Procon Pumps

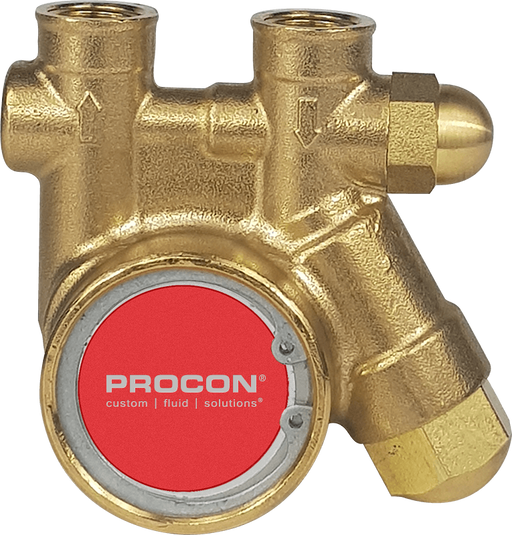

Technical Information Body Material Brass Port Size 3/8" NPT Mounting Type Clamp-On Drive Configuration Double Flat Flow Rate 15 GPH / 45 LPH Elastomer EPDM / Nitrile Seal Type Balances Silicon Carbide/Hard Carbon Rotation Clockwise Internal Component Material Carbon Internal Component Clearance Special Clearance for High Temperature Applications Valve Type Solid- Ultem Valve Configuration Standard-Non External adjust Operating Range Maximum Mechanical Power Requirement: 0.19hp (142W)¹ Maximum Operating Pressure: 60 psi Relief Valve Set Pressure Range: 60 to 99psi (4 to 7 bar) Max Static Pressure: 100 psi Operation Fluid Temperature Range: -4°F (-20°C) - 194°F (90°C) Max Fluid Viscosity: 100 cP Max Sound Level: 60dB(a) Max Discharge Pressure: 250 psi Min/Max Speed: 1000 - 2400 RPM Dry Suction Lift: 3.3 ft Wet Suction Lift: 6.6 ft Fluid Acidity: 6 pH Maximum Total Dissolved Solids (TDS): 5000 ppm ¹ Mechanical Horsepower requirement based on pump tested with water at room temperature and maximum operating pressure 250 psi (17.5bar) Motor Performance Motor Design IMB3

Technical Information Body Material: Stainless Steel Port Size: 3/8" NPT Mounting Type: Clamp-On Drive Configuration: Slotted With Bronze Coupling 1143 Flow Rate: 35 GPH / 100 LPH Elastomer: EPDM / NBR Seal Type: Non Balances Ceramic / Carbon Rotation: Clockwise Internal Component Material: Carbon Valve Type: Solid-Ultem Valve Configuration: Standard-Non External Adjust Operating Range Maximum Mechanical Power Requirement: 0.64hp (477W) Maximum Operating Pressure: 150 psi Relief Valve Set Pressure Range: 151 - 250 psi (10 - 17.5 bar) Max Static Pressure: 100 psi Operation Fluid Temperature Range: -4°F (-20°C) - 160°F (71°C) Max Fluid Viscosity: 100 cP Max Sound Level: 60dB(a) Max Discharge Pressure: 250 psi Min/Max Speed: 1000 - 2400 RPM Dry Suction Lift: 3.3 ft Wet Suction Lift: 6.6 ft Fluid Acidity: 2 pH Maximum Total Dissolved Solids (TDS): N/A ⚠ 3D Drawings are available upon request.

Technical Information Body Material: Stainless Steel Port Size: 3/8" NPT Mounting Type: Clamp-On Drive Configuration: Slotted With Bronze Coupling 1143 Flow Rate: 35 GPH / 100 LPH Elastomer: EPDM / NBR Seal Type: Non Balances Ceramic / Carbon Rotation: Clockwise Internal Component Material: Carbon Valve Type: Bypass-Ultem Valve Configuration: Balenced-External Adjust Operating Range Maximum Mechanical Power Requirement: 0.29hp (216W) Maximum Operating Pressure: 150 psi Relief Valve Set Pressure Range: 151 - 250 psi (10 - 17.5 bar) Max Static Pressure: 100 psi Operation Fluid Temperature Range: -4°F (-20°C) - 160°F (71°C) Max Fluid Viscosity: 100 cP Max Sound Level: 60dB(a) Max Discharge Pressure: 250 psi Min/Max Speed: 1000 - 2400 RPM Dry Suction Lift: 3.3 ft Wet Suction Lift: 6.6 ft Fluid Acidity: 2 pH Maximum Total Dissolved Solids (TDS): N/A ⚠ 3D Drawings are available upon request.

Technical Information Body Material: Stainless Steel Port Size: 3/8" NPT Mounting Type: Clamp-On Drive Configuration: Slotted With Bronze Coupling 1143 Flow Rate: 140 GPH / 425 LPH Elastomer: EPDM / NBR Seal Type: Non Balances Ceramic / Carbon Rotation: Clockwise Internal Component Material: Carbon Valve Type: Solid-Stainless Steel Valve Configuration: Standard-Non External Adjust Operating Range Maximum Mechanical Power Requirement: 0.64hp (477W) Maximum Operating Pressure: 150 psi Relief Valve Set Pressure Range: N/A Max Static Pressure: 100 psi Operation Fluid Temperature Range: -4°F (-20°C) - 160°F (71°C) Max Fluid Viscosity: 100 cP Max Sound Level: 60dB(a) Max Discharge Pressure: 250 psi Min/Max Speed: 1000 - 2400 RPM Dry Suction Lift: 3.3 ft Wet Suction Lift: 6.6 ft Fluid Acidity: 2 pH Maximum Total Dissolved Solids (TDS): N/A ⚠ 3D Drawings are available upon request.

Technical Information Body Material: Stainless Steel Port Size: 1/2" NPT Mounting Type: Clamp-On Drive Configuration: Slotted With Bronze Coupling 1143 Flow Rate: 330 GPH / 1000 LPH Elastomer: EPDM / NBR Seal Type: Non Balances Ceramic / Carbon Rotation: Clockwise Internal Component Material: Carbon Valve Type: N/A Valve Configuration: No Relief Valve Operating Range Maximum Mechanical Power Requirement: 1.22hp (909W) Maximum Operating Pressure: 250 psi Relief Valve Set Pressure Range: N/A Max Static Pressure: 100 psi Operation Fluid Temperature Range: -4°F (-20°C) - 160°F (71°C) Max Fluid Viscosity: 100 cP Max Sound Level: 60dB(a) Max Discharge Pressure: 250 psi Min/Max Speed: 1000 - 2400 RPM Dry Suction Lift: 3.3 ft Wet Suction Lift: 6.6 ft Fluid Acidity: 2 pH Maximum Total Dissolved Solids (TDS): N/A ⚠ 3D Drawings are available upon request.

Technical Information Body Material: Stainless Steel Port Size: 1/2" NPT Mounting Type: Clamp-On Drive Configuration: Slotted With Bronze Coupling 1143 Flow Rate: 265 GPH / 800 LPH Elastomer: EPDM / NBR Seal Type: Non Balances Ceramic / Carbon Rotation: Clockwise Internal Component Material: Carbon Valve Type: Solid-Ultem Valve Configuration: Standard Non-External Adjust Operating Range Maximum Mechanical Power Requirement: 1.01hp (753W) Maximum Operating Pressure: 150 psi Relief Valve Set Pressure Range: 151 - 250 psi (10 - 17.5 bar) Max Static Pressure: 100 psi Operation Fluid Temperature Range: -4°F (-20°C) - 160°F (71°C) Max Fluid Viscosity: 100 cP Max Sound Level: 60dB(a) Max Discharge Pressure: 250 psi Min/Max Speed: 1000 - 2400 RPM Dry Suction Lift: 3.3 ft Wet Suction Lift: 6.6 ft Fluid Acidity: 2 pH Maximum Total Dissolved Solids (TDS): N/A ⚠ 3D Drawings are available upon request.

Technical Information Body Material: Stainless Steel Port Size: 1/2" NPT Mounting Type: Clamp-On Drive Configuration: Slotted With Bronze Coupling 1143 Flow Rate: 265 GPH / 800 LPH Elastomer: EPDM / NBR Seal Type: Non Balances Ceramic / Carbon Rotation: Clockwise Internal Component Material: Carbon Valve Type: Solid-Ultem Valve Configuration: Standard Non-External Adjust Operating Range Maximum Mechanical Power Requirement: 0.75hp (559W) Maximum Operating Pressure: 150 psi Relief Valve Set Pressure Range: 151 - 250 psi (10 - 17.5 bar) Max Static Pressure: 100 psi Operation Fluid Temperature Range: -4°F (-20°C) - 160°F (71°C) Max Fluid Viscosity: 100 cP Max Sound Level: 60dB(a) Max Discharge Pressure: 250 psi Min/Max Speed: 1000 - 2400 RPM Dry Suction Lift: 3.3 ft Wet Suction Lift: 6.6 ft Fluid Acidity: 2 pH Maximum Total Dissolved Solids (TDS): N/A ⚠ 3D Drawings are available upon request.

Technical Information Body Material: Low Lead Brass Port Size: 3/8" NPT Mounting Type: Clamp-On Drive Configuration: Double Flat Flow Rate: 60 GPH / 180 LPH Elastomer: EPDM / NBR Seal Type: Non Balances Ceramic / Carbon Rotation: Clockwise Internal Component Material: Carbon Valve Type: Bypass-Ultem Valve Configuration: Balanced-External Adjust Operating Range Maximum Mechanical Power Requirement: 0.35hp (261W) Maximum Operating Pressure: 150 psi Relief Valve Set Pressure Range: 151 - 250 psi (10 - 17.5 bar) Max Static Pressure: 100 PSI Operation Fluid Temperature Range: -4°F (-20°C) - 160°F (71°C) Max Fluid Viscosity: 100 cP Max Sound Level: 60dB(a) Max Discharge Pressure: 250 psi Min/Max Speed: 1000 - 2400 RPM Dry Suction Lift: 3.3 ft Wet Suction Lift: 6.6 ft Fluid Acidity: 6 pH Maximum Total Dissolved Solids (TDS): 5000 ppm ⚠ 3D Drawings are available upon request.

Technical Information Body Material: Brass Port Size: 3/8" NPT Mounting Type: Clamp-On Drive Configuration: Double Flat Flow Rate: 140 GPH / 425 LPH Elastomer: EPDM / NBR Seal Type: Non Balances Ceramic / Carbon Rotation: Clockwise Internal Component Material: Carbon Valve Type: N/A Valve Configuration: No Relief Valve Operating Range Maximum Mechanical Power Requirement: 0.64hp (477W) Maximum Operating Pressure: 250 psi Relief Valve Set Pressure Range: N/A Max Static Pressure: 100 psi Operation Fluid Temperature Range: -4°F (-20°C) - 160°F (71°C) Max Fluid Viscosity: 100 cP Max Sound Level: 60dB(a) Max Discharge Pressure: 250 psi Min/Max Speed: 1000 - 2400 RPM Dry Suction Lift: 3.3 ft Wet Suction Lift: 6.6 ft Fluid Acidity: 6 pH Maximum Total Dissolved Solids (TDS): 5000 ppm ⚠ 3D Drawings are available upon request.

Technical Information Body Material: Brass Port Size: 3/8" NPT Mounting Type: Clamp-On Drive Configuration: Double Flat Flow Rate: 125 GPH / 375 LPH Elastomer: EPDM / NBR Seal Type: Non Balances Ceramic / Carbon Rotation: Clockwise Internal Component Material: Carbon Valve Type: N/A Valve Configuration: No Relief Valve Operating Range Maximum Mechanical Power Requirement: 0.57hp (425W) Maximum Operating Pressure: 250 psi Relief Valve Set Pressure Range: N/A Max Static Pressure: 100 psi Operation Fluid Temperature Range: -4°F (-20°C) - 160°F (71°C) Max Fluid Viscosity: 100 cP Max Sound Level: 60dB(a) Max Discharge Pressure: 250 psi Min/Max Speed: 1000 - 2400 RPM Dry Suction Lift: 3.3 ft Wet Suction Lift: 6.6 ft Fluid Acidity: 6 pH Maximum Total Dissolved Solids (TDS): 5000 ppm ⚠ 3D Drawings are available upon request.

Technical Information Body Material: Brass Port Size: 3/8" NPT Mounting Type: Clamp-On Drive Configuration: Double Flat Flow Rate: 35 GPH / 100 LPH Elastomer: EPDM / NBR Seal Type: Non Balances Ceramic / Carbon Rotation: Clockwise Internal Component Material: Carbon Valve Type: Bypass-Ultem Valve Configuration: Balanced- External Adjust Operating Range Maximum Mechanical Power Requirement: 0.29hp (216W) Maximum Operating Pressure: 150 psi Relief Valve Set Pressure Range: 151 - 250 psi (10 - 17.5 bar) Max Static Pressure: 100 psi Operation Fluid Temperature Range: -4°F (-20°C) - 160°F (71°C) Max Fluid Viscosity: 100 cP Max Sound Level: 60dB(a) Max Discharge Pressure: 250 psi Min/Max Speed: 1000 - 2400 RPM Dry Suction Lift: 3.3 ft Wet Suction Lift: 6.6 ft Fluid Acidity: 6 pH Maximum Total Dissolved Solids (TDS): 5000 ppm ⚠ 3D Drawings are available upon request.
