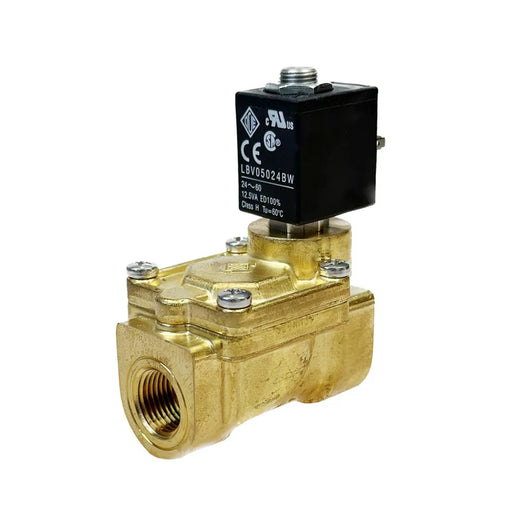

Valve Function Pilot Operated Valve Type General Purpose Solenoid Valve Fitting Type Connector Actuation Electric (Solenoid) Valve Starting Position Normally Closed Pipe 3/4" NPT Direction 2/2 Way Body Material Brass Sealing Material FPM Flow 5.7 m 3 /h (6.612 gpm) Pressure Rating 0.3-10 bar (4.4 - 145 psi) Datasheet DOWNLOAD Certifications CE, UL
Valve Function Pilot Operated Valve Type General Purpose Solenoid Valve Fitting Type Connector Actuation Electric (Solenoid) Valve Starting Position Normally Closed Pipe 3/4" NPT Direction 2/2 Way Body Material Brass Sealing Material NBR Flow 5.7 m 3 /h (6.612 gpm) Pressure Rating 0.3-10 bar (4.4 - 145 psi) Datasheet DOWNLOAD Certifications CE, UL
Valve Function Pilot Operated Valve Type General Purpose Solenoid Valve Fitting Type Connector Actuation Electric (Solenoid) Valve Starting Position Normally Closed Pipe 3/4" NPT Direction 2/2 Way Body Material Brass Sealing Material NBR Flow 5.7 m 3 /h (6.612 gpm) Pressure Rating 0.3-10 bar (4.4 - 145 psi) Datasheet DOWNLOAD Certifications CE
Valve Function Pilot Operated Valve Type General Purpose Solenoid Valve Fitting Type Connector Actuation Electric (Solenoid) Valve Starting Position Normally Open Pipe 3/4" NPT Direction 2/2 Way Body Material Brass Sealing Material FPM Flow 5.7 m 3 /h (6.612 gpm) Pressure Rating 0.3-10 bar (4.4 -145 psi) Datasheet DOWNLOAD Certifications CE, UL
Valve Function Servo-Controlled Valve Type General Purpose Solenoid Valve Fitting Type Connector Actuation Electric (Solenoid) Valve Starting Position Normally Closed Pipe 3/4" NPT Direction 2/2 Way Body Material Brass Sealing Material FPM Flow 5.5 m 3 /h (6.38 gpm) Pressure Rating 0-4 bar (0 - 58 psi) Datasheet DOWNLOAD Certifications CE, UL
Valve Function Pilot Operated Valve Type General Purpose Solenoid Valve Fitting Type Connector Actuation Electric (Solenoid) Valve Starting Position Normally Open Pipe 3/4" NPT Direction 2/2 Way Body Material Brass Sealing Material NBR Flow 5.7 m 3 /h (6.612 gpm) Pressure Rating 0.3-10 bar (4.4-145 psi) Datasheet DOWNLOAD Certifications CE, UL
Valve Function Indirect Acting Valve Type General Purpose Solenoid Valve Fitting Type Connector Actuation Electric (Solenoid) Valve Starting Position Normally Closed Pipe Size 3/4" BSP Direction 2/2 Way Body Material Brass Sealing Material FKM (fluoroelastomer) Flow 140.0 L/min Pressure Rating 0.2-16 bar (3-232 psi) Certifications CSA, UL, CRN Data Sheet ⇲ DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Indirect Acting Valve Type General Purpose Solenoid Valve Fitting Type Connector Actuation Electric (Solenoid) Valve Starting Position Normally Closed Pipe Size 3/4" BSP Direction 2/2 Way Body Material Brass Sealing Material EPDM (ethylene-propylene) Flow 140.0 L/min Pressure Rating 0.2-16 bar (3-232 psi) Certifications CSA, UL, CRN Data Sheet ⇲ DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Indirect Acting Valve Type General Purpose Solenoid Valve Fitting Type Connector Actuation Electric (Solenoid) Valve Starting Position Normally Closed Pipe Size 3/4" BSP Direction 2/2 Way Body Material Brass Sealing Material NBR (Nitrile Rubber) Flow 140.0 L/min Pressure Rating 0.2-16 bar (3-232 psi) Certifications CSA, UL, CRN Data Sheet DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Indirect Acting Valve Type General Purpose Solenoid Valve Fitting Type Connector Actuation Electric (Solenoid) Valve Starting Position Normally Closed Pipe Size 3/4" NPT Direction 2/2 Way Body Material Brass Sealing Material FKM (fluoroelastomer) Flow 140.0 L/min Pressure Rating 0.2-16 bar (3-232 psi) Certifications CSA, UL, CRN Data Sheet DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Indirect Acting Valve Type General Purpose Solenoid Valve Fitting Type Connector Actuation Electric (Solenoid) Valve Starting Position Normally Closed Pipe Size 3/4" NPT Direction 2/2 Way Body Material Brass Sealing Material EPDM (ethylene-propylene) Flow 140.0 L/min Pressure Rating 0.2-16 bar (3-232 psi) Certifications CSA, UL, CRN Data Sheet DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Indirect Acting Valve Type General Purpose Solenoid Valve Fitting Type Connector Actuation Electric (Solenoid) Valve Starting Position Normally Closed Pipe Size 3/4" NPT Direction 2/2 Way Body Material Brass Sealing Material NBR (Nitrile Rubber) Flow 140.0 L/min Pressure Rating 0.2-16 bar (3-232 psi) Certifications CSA, UL, CRN Data Sheet DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Direct Acting Valve Type Automatic Solenoid Valve for Gas Fitting Type Connector Actuation Electric (Solenoid) Valve Starting Position Normally Closed Pipe 3/4" NPT Direction 2/2 Way Body Material Aluminum Sealing Material NBR Flow 8.7 m 3 /hr (10.2 gpm) Maximum Pressure 69 mbar (1 psi) Certifications UL Data Sheet ⇲ DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Combined Acting Valve Type Explosion Proof- ATEX Ex d Solenoid Valve Actuation Electric (Solenoid) Valve Starting Position Normally Closed Pipe Size 3/4" NPT Direction 2/2 Way Body Material Stainless Steel Sealing Material NBR+ PA (Nitrile Rubber +polyamide) Flow 60 L/min Pressure Rating 0-14 bar (0-203 psi) Certifications CSA, UL, CRN, ATEX Data Sheet DOWNLOAD Instruction Sheet DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Combined Acting Valve Type Explosion Proof- ATEX Ex d Solenoid Valve Actuation Electric (Solenoid) Valve Starting Position Normally Closed Pipe Size 3/4" NPT Direction 2/2 Way Body Material Stainless Steel Sealing Material FKM+ PA (fluorelastomer +polyamide) Flow 60 L/min Pressure Rating 0-14 bar (0-203 psi) Certifications CSA, UL, CRN, ATEX Data Sheet DOWNLOAD Instruction Sheet DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Combined Acting Valve Type Explosion Proof- ATEX Ex d Solenoid Valve Actuation Electric (Solenoid) Valve Starting Position Normally Closed Pipe Size 3/4" BSP Direction 2/2 Way Body Material Stainless Steel Sealing Material FKM+ PA (fluorelastomer +polyamide) Flow 60 L/min Pressure Rating 0-14 bar (0-203 psi) Certifications CSA, UL, CRN, ATEX Data Sheet DOWNLOAD Instruction Sheet DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Combined Acting Valve Type Explosion Proof- ATEX Ex d Solenoid Valve Actuation Electric (Solenoid) Valve Starting Position Normally Closed Pipe Size 3/4" BSP Direction 2/2 Way Body Material Stainless Steel Sealing Material NBR+ PA (Nitrile Rubber +polyamide) Flow 60 L/min Pressure Rating 0-14 bar (0-203 psi) Certifications CSA, UL, CRN, ATEX Data Sheet DOWNLOAD Instruction Sheet DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Indirect Acting Valve Type Explosion Proof- ATEX Ex d Solenoid Valve Actuation Electric (Solenoid) Valve Starting Position Normally Open Pipe Size 3/4" BSP Direction 2/2 Way Body Material Brass Sealing Material FKM (Fluoroelastomer) Flow 140.0 L/min Pressure Rating 0.2-16 bar (3-232 psi) Certifications CSA, UL, CRN, ATEX Data Sheet DOWNLOAD Instruction Sheet DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Indirect Acting Valve Type Explosion Proof- ATEX Ex d Solenoid Valve Actuation Electric (Solenoid) Valve Starting Position Normally Open Pipe Size 3/4" BSP Direction 2/2 Way Body Material Brass Sealing Material H-NBR (Hydrogenated Nitrile) Flow 140.0 L/min Pressure Rating 0.2-16 bar (3-232 psi) Certifications CSA, UL, CRN, ATEX Data Sheet DOWNLOAD Instruction Sheet DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Indirect Acting Valve Type Explosion Proof- ATEX Ex d Solenoid Valve Actuation Electric (Solenoid) Valve Starting Position Normally Open Pipe Size 3/4" BSP Direction 2/2 Way Body Material Brass Sealing Material EPDM (ethylene-propylene) Flow 140.0 L/min Pressure Rating 0.2-16 bar (3-232 psi) Certifications CSA, UL, CRN, ATEX Data Sheet DOWNLOAD Instruction Sheet DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Indirect Acting Valve Type Explosion Proof- ATEX Ex d Solenoid Valve Actuation Electric (Solenoid) Valve Starting Position Normally Open Pipe Size 3/4" BSP Direction 2/2 Way Body Material Brass Sealing Material NBR (Nitrile Rubber) Flow 140.0 L/min Pressure Rating 0.2-16 bar (3-232 psi) Certifications CSA, UL, CRN, ATEX Data Sheet DOWNLOAD Instruction Sheet DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Indirect Acting Valve Type Explosion Proof- ATEX Ex d Solenoid Valve Actuation Electric (Solenoid) Valve Starting Position Normally Open Pipe Size 3/4" NPT Direction 2/2 Way Body Material Brass Sealing Material H-NBR (Hydrogenated Nitrile) Flow 140.0 L/min Pressure Rating 0.2-16 bar (3-232 psi) Certifications CSA, UL, CRN, ATEX Data Sheet DOWNLOAD Instruction Sheet DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Indirect Acting Valve Type Explosion Proof- ATEX Ex d Solenoid Valve Actuation Electric (Solenoid) Valve Starting Position Normally Open Pipe Size 3/4" NPT Direction 2/2 Way Body Material Brass Sealing Material FKM (Fluoroelastomer) Flow 140.0 L/min Pressure Rating 0.2-16 bar (3-232 psi) Certifications CSA, UL, CRN, ATEX Data Sheet DOWNLOAD Instruction Sheet DOWNLOAD ⚠ 3D Drawings are available upon request.
Valve Function Indirect Acting Valve Type Explosion Proof- ATEX Ex d Solenoid Valve Actuation Electric (Solenoid) Valve Starting Position Normally Open Pipe Size 3/4" NPT Direction 2/2 Way Body Material Brass Sealing Material EPDM (ethylene-propylene) Flow 140.0 L/min Pressure Rating 0.2-16 bar (3-232 psi) Certifications CSA, UL, CRN, ATEX Data Sheet DOWNLOAD Instruction Sheet DOWNLOAD ⚠ 3D Drawings are available upon request.
