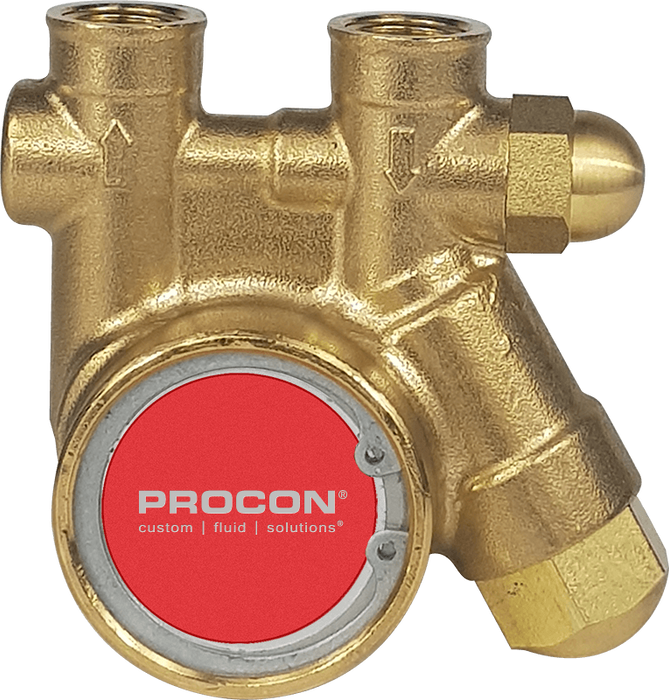

PROCON 101B100F11BC- 3/8" NPT Brass Rotary Vane Pump Series 1
Brass Body

PROCON 101B100F11BC- 3/8" NPT Brass Rotary Vane Pump Series 1

Premium Rotary Vane Pump

$210.99 - $210.99
$210.99
$210.99 - $210.99
$210.99
Availability:
In stock
TECHNICAL SPECIFICATIONS

Have A Question? - Contact Us

Technical Information
Body Material Brass
Port Size 3/8" NPT
Mounting Type Clamp-On
Drive Configuration Slotted With Bronze Coupling 1143
Flow Rate 100 GPH / 300 LPH
Elastomer

EPDM/Nitrile
Seal Type
Non Balances Ceramic/Carbon
Rotation Clockwise
Internal Component Material Carbon
Valve Type Solid- Ultem
Valve Configuration
Standard-Non External adjust



Operating Range
Maximum Mechanical Power Requirement: 0.42hp (313W)
Maximum System Pressure:

60 psi
Relief Valve Set Pressure Range

60 to 99psi (4 to 7 BAR)
Max Static Pressure: 100 psi
Operation Fluid Temperature Range: -4°F (-20°C) - 160°F (71°C)
Max Fluid Viscosity: 100 cP
Max Sound Level: 60dB(a)
Max Discharge Pressure: 250 psi
Min/Max Speed: 1000 - 2400 RPM
Dry Suction Lift: 3.3 ft
Wet Suction Lift: 6.6 ft
Fluid Acidity: 6 pH
Maximum Total Dissolved Solids (TDS): 5000 ppm

Net Weight: 2.4 lb
APPLICATIONS

Suitable for use in a variety of industries including

Product Details

  • Consistent flow rate across variable pressures
  • Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
  • Internal Relief Valve Standard-Non External adjust configuration
  • Integral Strainer for debris removal from pumping fluid
  • Brass Housing Material
  • NPT 3/8" Inlet and Outlet Connections
  • Constructed with EPDM/Nitrile Elastomers
  • Flowrate of 100GPH (300LPH)*
  • Fluid Operating Temperature of between -4°F to 160°F (-20°C to 71°C)
  • Maximum Mechanical Horsepower required 0.42hp (313W)¹

* GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz¹ Mechanical Horsepower requirement based on pump tested with water at room temperature and maximum operating pressure 250psi (17.5BAR)
