Valve Leaks When Switched Off: Seat Leakage or External Leak?

If a solenoid valve leaks when it’s switched off, your priority is to determine whether fluid is passing the internal seat (through‑valve leakage) or escaping at an external joint, thread, gasket, ferrule or tube. The safest practical work avoids pressurised disassembly; instead use isolation, leak‑detection spray, pressure‑hold checks, acoustic localization and brief functional testing under site safety rules. For gas shut‑off valves, treat any suspected internal seat leak as a safety issue and isolate the circuit immediately.

Definitions (short)

• Solenoid valve: electrically actuated on/off valve (common actuation: coil energised → valve opens; normally closed = valve closed when de‑energised).
• Seat leakage (internal): flow that crosses the valve’s internal sealing surface when the valve should be closed.
• External leak: fluid escaping at threads, compression ferrules, pipe/valve interfaces, body seams, or nearby hose clamps.

How valves normally seal and why they can leak when “off”

Most on/off solenoids use a plug/poppet or disc pressing onto a seat. Effective sealing depends on correct geometry, undamaged sealing faces, compatible seal material, and the right valve type for the duty (e.g., some valves require a minimum differential pressure to close reliably). Common causes of leakage while closed:

• Seat wear or damage: abrasion, corrosion, nicked edges or torn valve seat material.
• Entrapped debris between plug and seat preventing full closure.
• Material incompatibility: seal swelling, embrittlement or chemical attack from the process medium or temperature exposure.
• Wrong valve selection: valve requiring minimum ΔP installed where near‑zero differential is needed.
• External failures: loose threads, damaged ferrules, cracked bodies, failing gaskets or poor threadseal.

Why diagnose without pressurised disassembly

Loosening or opening pressurised joints risks injury, contaminating the system, and voiding warranties. Non‑intrusive diagnostics let you collect evidence to decide if a simple re‑seal, retorque, or full valve replacement is needed.

Non‑intrusive checks you can perform safely

Note: follow site lockout/tagout and gas‑safety rules. Never loosen live fittings.

• Isolate and depressurise downstream of the valve where permitted. Stay within your site’s written procedures.
• Dry the valve and nearby pipework so fresh wetness is visible during testing.
• Apply an approved leak detector or soapy water at all threaded joints, ferrules, hose clamps and body seams. Observe for steady bubbles while the valve is closed.
• With the valve closed, fit a calibrated gauge downstream and record pressure decay over defined intervals (e.g., 1 min, 5 min, 10 min). If fittings are dry yet pressure decays, the seat is suspect.
• If allowed, briefly energise the valve and observe whether the leak stops, reduces, or relocates. A leak that changes on actuation commonly implicates the internal seat or actuator linkage.
• Localise sound with a mechanic’s stethoscope or an ultrasonic leak detector. Hissing or a focused spot of noise at a thread points external; a diffuse hiss from behind the coil or body area often indicates internal leakage.
• Photograph every step and mark leaking locations for traceability.

Compact comparison: through‑seat leak vs external/connection leak

SKU examples and model limits to confirm before removal

Always verify the exact SKU plate or product page for the valve on your system. Examples from our stock pages (read the SKU page for the device you have):

• ODE MD22N06C4B025‑C36P 24VAC 1" NPT — sealing material listed as NBR and product page shows Maximum Pressure 360 mbar (5.2 psi). See the SKU page for photos of ports and body: ODE MD22N06C4B025‑C36P 24VAC 1" NPT.
• ODE MD22N05C4B020‑C35P 24VAC 3/4" NPT — MD22 3/4" SKUs list NBR sealing and Maximum Pressure 360 mbar (5.2 psi); confirm on your valve plate: ODE MD22N05C4B020‑C35P 24VAC 3/4" NPT.

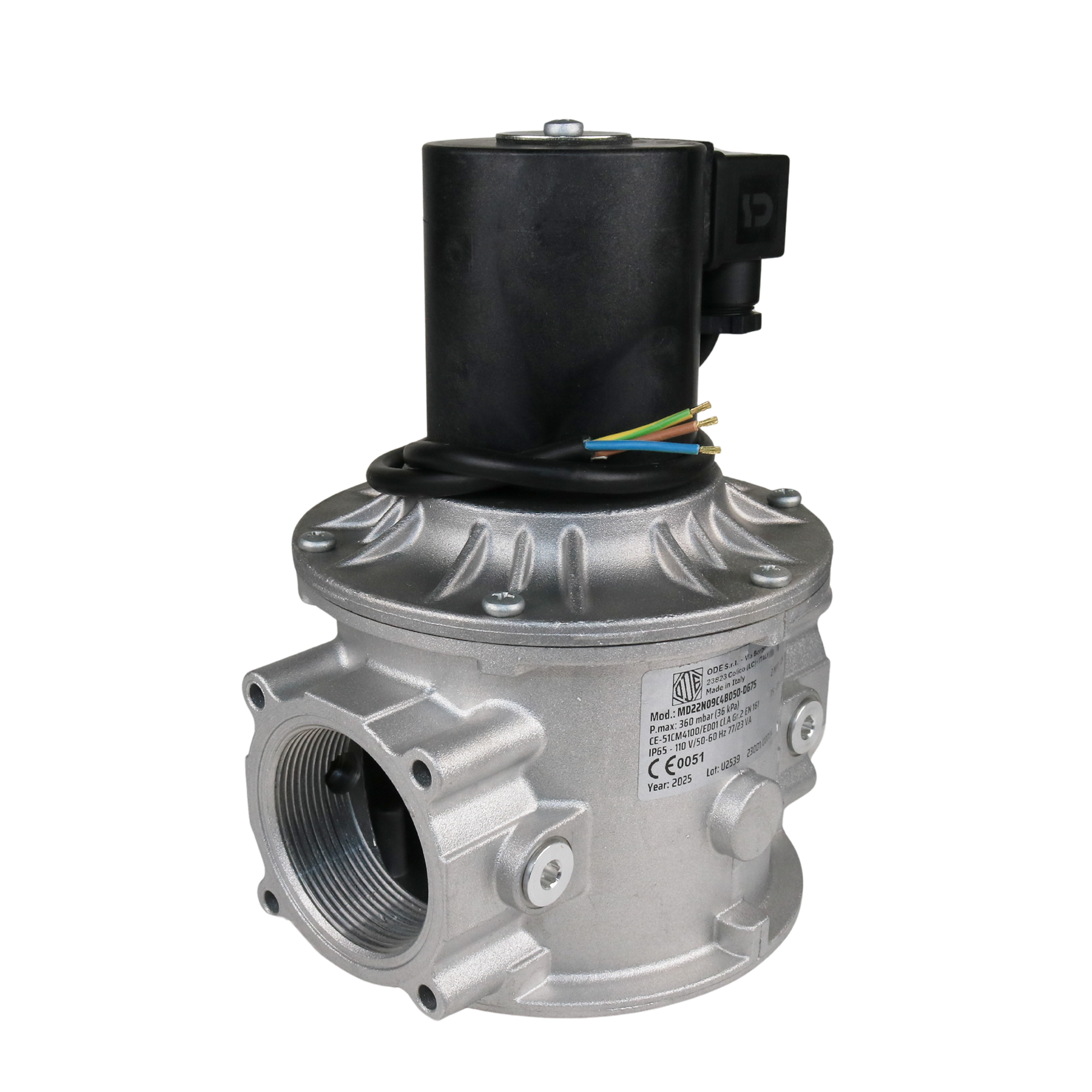

• ODE MD22N09C4B050‑D37P 24VAC 2" NPT — product page lists Maximum Pressure 360 mbar (5.22 psi) and shows port geometry useful for visual comparisons: ODE MD22N09C4B050‑D37P 24VAC 2" NPT.
• ODE MD74N09C4B050‑D07H 12VDC 2" NPT — a larger family SKU that lists Maximum Pressure 1 bar (15 psi) on its page; check this SKU if your valve is marked MD74/MD75: ODE MD74N09C4B050‑D07H 12VDC 2" NPT.
• Some MD75 variants list different maximum pressures (example: MD75N07C4B032 variants show lower published max pressure); always compare the exact SKU plate to the product page you find on the valve. If your valve plate matches a different SKU on our site, open that SKU page to confirm sealing material and maximum pressure (images on each SKU page help locate typical external leak points): ODE MD22N07C4B032‑D67S 110VAC 1‑1/4" NPT.

Use the SKU pages primarily to confirm the valve’s published maximum pressure, sealing material and port geometry before planning removal or replacement. The photos on those pages are useful for spotting where external leaks commonly originate (threads, connector faces, hose barb areas).

Interpreting pressure‑hold and soap tests — technician guidance

• Soap test interpretation: steady, continuous bubbles at a joint mean a direct external leak. Intermittent small bubbles that stop when you retest after drying may be wicking or trapped residual fluid.
• Pressure hold interpretation: with the valve closed and downstream gauge in place, pick a short test window (e.g., 10 minutes) and record the pressure. For gas systems, any measurable decay is significant and requires immediate action. For liquid systems, compare the decay rate with the known system volume: a fast decay (noticeable drop in minutes) is a high‑rate leak; a very slow decay over hours may be acceptable temporarily but requires monitoring.
• Functional actuation test: if energising the valve consistently stops the leak, the seat or actuator linkage is failing; do not leave the system in that condition — schedule replacement.
• Acoustic localization: move a stethoscope slowly and compare signal strength. Ultrasonic detectors often show a louder signal over true pinhole leaks; combine acoustic reading with the soap test to confirm the exact joint.

Single technician checklist (one selection checklist — non‑intrusive tests only)

Required tools: calibrated pressure gauge (psi or kPa), approved leak detector spray, inspection mirror, torch, stethoscope or ultrasonic detector, clamp meter (optional), torque wrench (for allowed retorque work), camera.

1. Safety and isolation
2. Follow lockout/tagout and disconnect control power. Notify site personnel for gas systems.
3. Close upstream isolation and depressurise the downstream side per site procedure; confirm zero differential before any mechanical work.

1. Visual and soap test
2. Dry the valve and adjacent piping thoroughly (use cloth or air). Photograph the dry baseline.
3. Apply approved leak detector at all threaded joints, ferrules, clamps, hose barbs, connector faces and visible body seams. Observe for bubbles with the valve closed and record locations.

1. Pressure‑hold measurement
2. Repressurise to normal working pressure with the valve closed and record gauge reading at 0, 1, 5 and 10 minutes. Photograph the gauge. If the system volume is known, note that to support later leak‑rate calculations.

1. Functional actuation and electrical checks
2. If permitted, briefly energise the valve per safety rules and observe the leak. Note whether leak stops, reduces, increases or moves.
3. Measure coil voltage and running current while energised to confirm correct supply.

1. Acoustic localisation
2. Sweep the valve body and fittings with a stethoscope or ultrasonic detector while the valve is closed. Record where the signal is strongest and compare to soap‑test bubbles.

1. Controlled retorque or simple reseal (only after depressurising)
2. If a fitting shows soap bubbles and the joint is serviceable, depressurise, replace damaged ferrule/gasket or retorque to manufacturer torque if available; if torque spec is unknown, tighten in small increments and re‑test under pressure.
3. Use correct thread sealant (liquid/sealant or PTFE tape) appropriate for the medium and local code — for gas systems follow authority having jurisdiction rules and avoid temporary methods on safety devices.

1. Document, decide and tag
2. If external leaks stop after resealing, monitor under normal duty and schedule follow up checks.
3. If energising the valve temporarily reduces the leak, or if pressure hold with dry fittings shows continuous decay and acoustic evidence at the valve body, plan valve replacement or manufacturer service.

Compact data capture worksheet (single, brief form)

Valve model / SKU: __________________ Medium: __________ Nominal working pressure: __________ Downstream gauge (closed): ________ (units). After 10 min closed: ________ (units). Recorded pressure loss: ________. Soap test bubbles: fittings (none / inlet / outlet / body seam / connector) ________ Energise response: (no change / reduces / stops / increases) ________ Acoustic highest signal: (thread / body / ambiguous) ________ Action taken: (re‑seal fitting / retorque / replace valve / isolate & schedule service) ________ Photos attached: yes / no. Technician initials: ________

When a leak means replacement rather than a field fix

• Persistent seat leakage after cleaning, cycling and validating coil voltage typically indicates damaged seat geometry or degraded seal material; the correct action is valve replacement or manufacturer‑authorised service. Field repairs that open the valve while pressurised are unsafe and commonly void warranties.
• For gas shut‑off valves and safety devices, any confirmed or suspected internal seat leakage is a high‑priority failure mode: isolate, tag out and engage a licensed gas technician for replacement immediately.

Practical retorque and reseal tips (safe, conservative)

• Compression fittings (ferrules): if a ferrule leak is found and the fitting is serviceable, depressurise, back off the nut, inspect the ferrule and tube for damage, replace the ferrule if deformed, and reassemble to manufacturer torque. If the ferrule or tubing is nicked, replace the fitting.
• NPT threads: after depressurising, disassemble, clean mating threads, apply appropriate PTFE tape or pipe compound compatible with the medium, reassemble and torque moderately. Do not rely on thread‑seal tape alone for critical safety devices—follow code and manufacturer guidance.
• If you cannot stop a leak with correct reseal/retorque, assume the valve body or internal seat is at fault.

Related reading and product pages (useful references with photos)

• For visual comparison of where external thread and connector leaks occur on MD22 1" bodies, see the product photos on the MD22 1" SKU page: ODE MD22N06C4B025‑C36P 24VAC 1" NPT.
• For a larger MD22 port view and its sealing faces, review the 2" SKU images: ODE MD22N09C4B050‑D37P 24VAC 2" NPT.
• If you need to consider alternate valve types for frequent seat wear or particulate service, our guide on angle seat valves explains why a different style can reduce seat failures: What Are Angle Seat Valves & How Do They Work?.
• For steam or high‑temperature duties and material guidance (where corrosion and coil protection matter), see this detailed overview: Steam Solenoid Valves for Breweries & Commercial Ironers.
• For MD74/MD75 family photos and specs (useful when your valve plate shows those families), check: ODE MD74N09C4B050‑D07H 12VDC 2" NPT and ODE MD75N07C4B032‑D07H 12VDC 1‑1/4" NPT.

When to call a technician or supplier

• Call a licensed technician immediately for any suspected internal seat leak on a gas shut‑off valve or if you cannot safely isolate and repair the leak.
• If you want help confirming a replacement, send the exact valve SKU, medium, measured pressures, actuation voltage, and photos of the leak area — that evidence lets a supplier recommend a direct replacement SKU or confirm whether an alternate model could be appropriate.

FAQ (short)

Q: If energising the valve stops the leak, is it okay to leave it in service? A: No. If the valve only seals while energised, the internal seal is degraded or the actuator is misaligning the seat. Schedule replacement promptly.

Q: Can PTFE tape fix a slow thread leak? A: For many non‑critical liquid and inert gas joints, proper PTFE tape or thread compound applied after depressurising can stop a leak. For safety devices and gas lines, follow local code and use approved sealants and methods. Never apply a temporary external seal to a safety valve in service.

Q: The valve body is wet but the soap test is negative — what next? A: Wicking, condensation or spray from another nearby leak can cause apparent wetness. Dry the area, re‑test with leak detector, perform a pressure hold and use acoustic localisation to identify the true source.

Need help interpreting your test results? Provide the valve SKU, medium, measured pressures (psi or kPa), operating voltage and photos of the leak area — with that evidence we can help decide whether the evidence points to an external fitting fault or an internal seat failure that requires replacement.
