If an equipment drawing or nameplate lists an ASCO 8210G009 and you are considering the ODE 21WN5KB190 as a replacement candidate, treat that pairing as a conditional evaluation—not a verified drop-in. Matching a nominal 3/4" port only verifies mechanical diameter. Electrical, hydraulic and certification details determine whether the replacement will actually work in your system.

Quick takeaway

• Do not install an ODE 21WN5KB190 as a direct replacement for an ASCO 8210G009 unless you have the ASCO nameplate or datasheet and have compared every relevant specification against the exact ODE SKU and coil datasheet.
• HDI product pages list ODE 21WN5KB190 variants as 3/4" NPT, indirect-acting (pilot-assisted) and using NBR seals for many variants, but product-page flow numbers do not state the medium or ΔP. Use the ODE SKU-specific datasheet (linked on the product pages) to obtain Cv/Kv or flow-at-ΔP and the exact certification block before deciding.

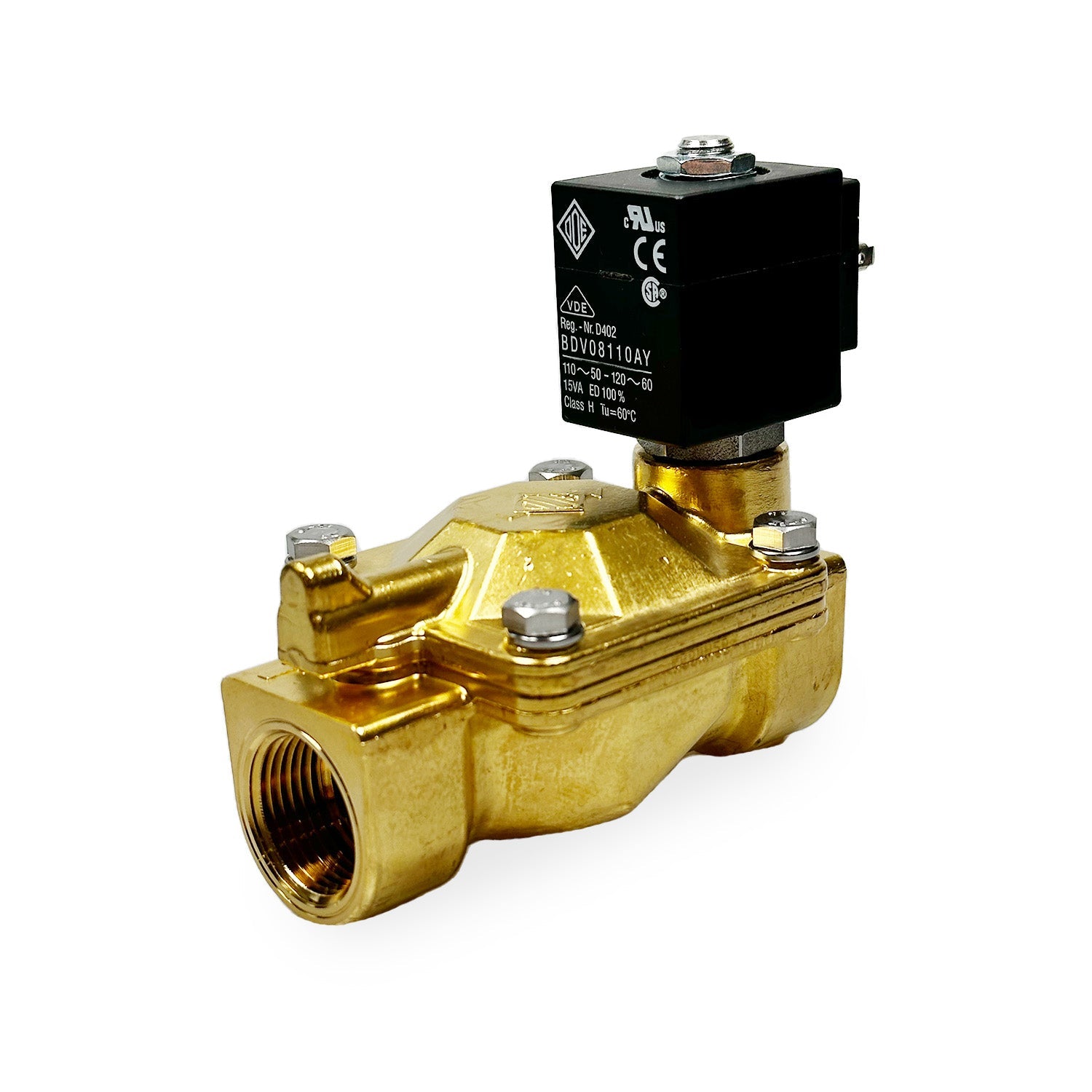

ODE 21WN5KB190 — vendor-sourced facts you can verify on the product pages

• Listed connection: 3/4" NPT on the HDI product pages for 21WN5KB190 variants.
• Valve function (family listing): indirect-acting (pilot-assisted), 2/2-way, normally closed (as shown on the HDI pages).
• Seals shown on HDI pages: NBR (nitrile) for the standard listed variants; family pages also show EPDM, FKM and H‑NBR for other models.
• Pressure range and approvals: HDI pages list a typical working range and indicate CSA/UL/CRN for many variants, but approvals are SKU-specific and must be confirmed on the SKU datasheet PDF linked on the product page.

See the ODE product pages (with photos and datasheet links) for the valve and its MR/manual variant:

• ODE 21WN5KB190 product page
• ODE 21WN5KB190-MR product page

Download and keep the exact SKU datasheet PDFs from those pages to capture Cv/Kv or flow-at-ΔP curves, minimum pilot ΔP, coil data and the certification block for the SKU you intend to use.

Why two 3/4" valves can behave very differently (briefly)

• Acting method: indirect/pilot-assisted valves depend on a pilot pressure differential to move the main stage. Many pilot designs require a minimum ΔP to open fully. Direct-acting valves can open at zero ΔP but generally have different flow characteristics.
• Internal orifice and Cv/Kv: port size alone does not set flow; orifice geometry and internal passageways determine Cv/Kv and the flow at a given ΔP.
• Coil electrical characteristics: AC vs DC, nominal voltage, inrush, continuous power and duty class affect opening speed, holding force and heat rise.
• Seal chemistry and temperature/chemical limits: NBR, EPDM, FKM, H‑NBR and PTFE each have different compatibilities and temperature ranges—match the elastomer to the fluid and temperature.
• Approvals and documentation: family-level approval claims on a product page do not substitute for the SKU-specific certification statement on the datasheet.

For a practical overview of selection checks, see our guide: How to Choose a Solenoid Valve: 6 Checks Before You Buy.

Compact comparison table — what to confirm on both sides

Table notes: ODE column entries are vendor-sourced and require verification on the exact ODE SKU datasheet linked from the product page. The ASCO column is a checklist of required confirmations because the ASCO 8210G009 datasheet was not provided to HDI.

How pilot-assisted valves typically behave — practical examples

• Low-ΔP supply: An indirect valve that needs a minimum pilot ΔP may not open fully when upstream and downstream pressures are nearly equal. If the ASCO part was direct-acting and the system runs near-zero ΔP, an indirect ODE substitute could fail to provide required flow.

• Flow-at-low-drop requirement: A process that needs significant flow with only a small allowable pressure drop must be evaluated using Cv/Kv or flow-at-ΔP curves. Do not rely on product-page nominal flow numbers without the specified ΔP and medium.

• Transients and water hammer: Opening speed is influenced by coil and pilot design. If the system is susceptible to pressure transients, compare manufacturer transient guidance and consider slow-opening coils or control strategies.

For application-level context on compressor and refrigeration crossovers, see: ODE Solenoid Valves for Screw Air, Refrigeration, and Hydraulic Compressors.

Technician verification checklist (one numbered step per line; substeps nested)

1. Confirm thread form and mechanical fit: verify whether the host fitting is 3/4" NPT (tapered) or 3/4" BSP (parallel); the ODE product pages list 3/4" NPT.

1.1. If connection markings are obscured, remove the valve and inspect the nameplate or measure thread taper with gauges.

1. Obtain the ASCO 8210G009 datasheet or clear coil/nameplate photos: record acting method, Cv/Kv or flow-at-ΔP, seal material and minimum/maximum operating pressures.
2. Download and archive the exact ODE SKU datasheet from the HDI product page and record: minimum pilot ΔP, Cv/Kv or flow curves, coil cold resistance/power, seal material and the certification block.
3. Confirm minimum differential pressure compatibility: compare ASCO minimum ΔP (if specified) with the ODE SKU pilot/main-stage requirements at your operating point.
4. Compare flow at the system operating point: calculate required flow from system data and compare using Cv/Kv or flow-at-ΔP on both datasheets (same medium, temperature and ΔP). Do not equate Cv to delivered flow without the operating point.
5. Match seal chemistry and temperature: identify the process fluid and temperature range; verify that the ODE SKU elastomer is compatible with that fluid and temperature.
6. Match coil electrical details: confirm ASCO coil voltage, AC/DC, frequency, duty rating and connector; select an ODE coil SKU that exactly matches those electrical and connector requirements.
7. Confirm approvals and documentation: if a specific approval is required (UL/CSA/CRN), verify the certification block on the ODE SKU datasheet PDF referenced on the product page.
8. Check installation requirements: verify flow direction, mounting orientation, upstream straight-run and any pilot-strainer recommendations on the ODE datasheet.
9. Plan a controlled test and fallback: source the ODE SKU with the correct coil and seals, keep the original ASCO assembly available if possible, and schedule the functional tests below before committing to service replacement.

Paper-to-field test plan after the datasheet match

1. Mechanical leak test: install with the correct thread sealant per valve guidance and torque to the manufacturer’s recommendation; pressurize and inspect for external leaks.
2. Low-pressure functional test: with gauges upstream and downstream, energize the coil and record opening time, pressure differential and flow at normal operating pressure.
3. Multi-point pressure test: repeat at representative low and high inlet pressures your system may see to confirm full opening across range.
4. Electrical verification: measure coil cold resistance and verify against the ODE coil datasheet; monitor coil temperature during continuous energization to ensure it remains within rated limits.
5. Duty-cycle validation: operate the valve through expected cycles to watch for chatter, slow opening, partial flow or leak-by when de-energized.
6. Recordkeeping: photograph coil labels and valve nameplates and attach both ASCO and ODE SKU datasheets to the service record.

If you need case review or help interpreting test results, send photos and logs to Hydronics Depot emergency support: Emergency & Weekend Support from Hydronics Depot Inc..

When a crossover is attractive — and when it isn’t

• Candidate substitution is reasonable when: thread form is confirmed as 3/4" NPT; ODE seal material is compatible with the fluid and temperature; ODE minimum ΔP is acceptable for your operating range; and a coil variant exists that matches the ASCO coil voltage, duty and connector.

• Do not substitute when: the installed ASCO part requires zero-ΔP operation or is direct-acting and your system routinely operates at near-zero ΔP; the process fluid is incompatible with the ODE SKU elastomer; required approvals for the installed ASCO SKU cannot be matched by the ODE SKU; or the electrical coil options offered for the ODE SKU do not match your control method.

If your valve is ODE and you need rebuild/repair guidance (not an ASCO crossover), see: ODE Valves in Operation Since 1960: Repair, Rebuild, and Keep Water Systems Running.

For gas-train or certified gas-valve crossovers where approvals and safety are critical, consult: ODE Gas Valves for Power Generation, Compressors and Industrial Furnaces.

What to send us for a vetted crossover recommendation

• Clear photos of the installed ASCO valve body and close-up of the coil label.
• ASCO datasheet or, at minimum, named ASCO coil voltage, Cv/Kv (or flow at a stated ΔP), minimum/maximum pressure and seal material.
• System details: fluid ID, glycol % if any, typical and max temperature, expected flow rate and allowable pressure drop, and the electrical control method (steady voltage, PWM, transformer-fed).

With those items Hydronics Depot can compare the ASCO specs directly against the ODE SKU datasheet and advise if the ODE SKU is suitable, recommend an alternate ODE variant with compatible seals and coil, or advise preserving the ASCO assembly until a matched replacement is obtained.

Final note

This article treats "ASCO 8210G009 → ODE 21WN5KB190" strictly as a candidate crossover. Do not claim interchangeability or install the ODE SKU as a drop-in replacement without documented confirmation (ASCO datasheet or nameplate and the exact ODE SKU datasheet) that thread standard, acting method/minimum ΔP, Cv/Kv or flow-at-ΔP, seal compatibility and coil electrical details match for the exact SKUs involved. For assistance collecting the datasheet information or running tests, contact Hydronics Depot emergency support: Emergency & Weekend Support from Hydronics Depot Inc..
