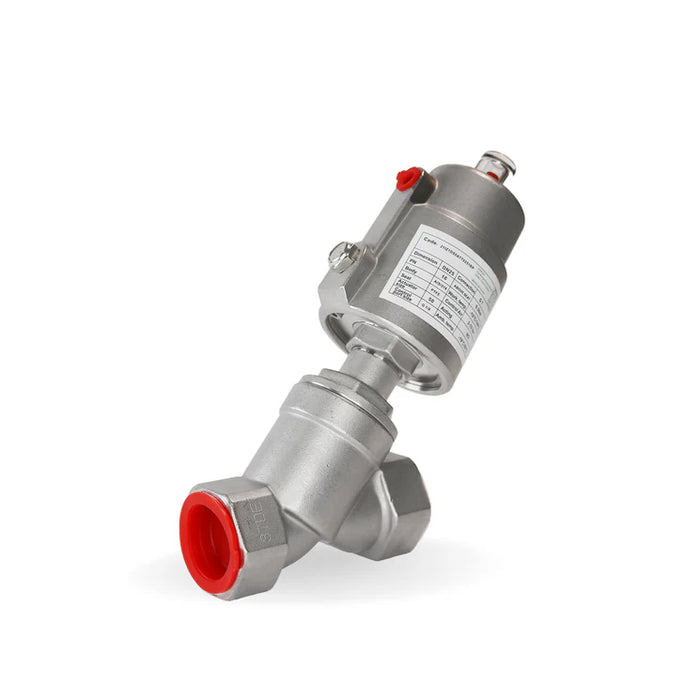

ODE 21IZ1DS0ATT0251BP Angle Seat Valve 1" BSP N.O 2/2 WAY
Stainless Steel Body

ODE 21IZ1DS0ATT0251BP Angle Seat Valve 1" BSP N.O 2/2 WAY

Premium Angle Seat Valve | Made in Italy

$489.95 - $489.95
$489.95
$489.95 - $489.95
$489.95
Availability:
In stock
TECHNICAL SPECIFICATIONS

Have A Question? - Contact Us

Valve Type Angle Seat Valve
Actuation Pneumatically Operated
Flow Direction Above Seat
Valve Starting Position Normally Open
Pipe 1" BSP
Direction 2/2 Way
Body Material Stainless Steel - SS316
Sealing Material PTFE
Flow 226.0 L/min
Pressure Rating 0-3 bar (0-43 psi)
Certifications CE
Data Sheet  DOWNLOAD

⚠ 3D Drawings are available upon request.

Net Weight: 3.68 lb
APPLICATIONS

Suitable for use in a variety of industries including

Air
Chemical
Compressors
Filling Machines
Food&Beverage

Made from durable stainless steel, it offers exceptional corrosion resistance. The valve includes an optical position indicator for easy monitoring, and its self-adjusting stem packing ensures a long service life. Designed for versatility, it allows for flexible mounting orientation and includes a 360° rotatable pneumatic actuator for easy integration into any system. Ideal for industrial and water treatment applications, this valve combines efficiency, durability, and adaptability
Shipping Protection
Protection Icon
Shipping Protection
Enhance the protection of your shipment with our shipping insurance, guarding it against loss during shipping.

Certain restrictions apply.

Starting at only $5
Valve Identification

Identifying Our Valve

Identifying ODE part numbers is crucial for several reasons. First and foremost, it ensures that you are ordering the correct valve for your specific application. ODE offers a wide range of valves, each designed for different purposes. By identifying the part number, you can be confident that you are getting the right valve that meets your requirements.

Part Number on the Body

The ODE part number is typically engraved or printed on the valve body. Look for a series of alphanumeric characters that uniquely identify the valve model. The part number is usually located on the side or the bottom of the valve body. In some cases, it may also be found on the valve tag or label.

Additional Info Image

  • Series

    The first few characters of the part number represent the valve series. This indicates the general type or category of the valve, such as solenoid valves, proportional valves, or pressure regulators.

  • Port Size

    The next set of characters denotes the valve size. This refers to the physical dimensions of the valve, such as the port size.

  • Sealing Material

    Following the size, there may be additional characters that indicate the valve's specific sealing material.
