Stainless Steel Body
ODE 21IN5K1B200-IH Solenoid Valve 3/4" NPT 2/2 WAY Normally Closed (N.C)
Premium Solenoid Valve
Compatibility CHART
Notice: This valve is a suitable replacement for the following original equipment manufacturer models.
It is the customer’s responsibility to confirm compatibility with their specific application prior to purchase.
(E&OE)
| Original Equipment Manufacturer | OEM Part Number | Match Type |
|---|---|---|
| ASCO | 8210G088, SC8210G088 | Functional Alternative |
| Jefferson | 1314IA06AT, 1314IA06T, 1335IA6T, 1335IA6AT, 1342IA06T | Functional Alternative |
| Parker | 12F23C6148ACF, 12F23C6148A3F | Functional Alternative |
TECHNICAL SPECIFICATIONS
Have A Question? - Contact Us
| Voltage | Power | Complete P/N |
| 12V DC | 8 W | 21IN5K1B200-IHBM3 |
| 12V AC (50 Hz) | 8 W | 21IN5K1B200-IHB17 |
| 24V DC | 8 W | 21IN5K1B200-IHBJ4 |
| 24V AC (50/60 Hz) | 8 W | 21IN5K1B200-IHBK5 |
| 110-120V AC (50/60 Hz) | 8 W | 21IN5K1B200-IHBK6 |
| 230-240V AC (50/60 Hz) | 8 W | 21IN5K1B200-IHBK7 |
| 12V DC | 12 W | 21IN5K1B200-IHU24 |
| 24V DC | 12 W | 21IN5K1B200-IHU25 |
| Valve Function | Combined Acting |
| Valve Type | General Purpose Solenoid Valve |
| Fitting Type | Connector |
| Actuation | Electric (Solenoid) |
| Valve Starting Position | Normally Closed |
| Pipe | 3/4" NPT |
| Direction | 2/2 Way |
| Body Material | Stainless Steel - SS316 |
| Sealing Material | NBR + PA (Nitrile Rubber + Polyamide) |
| Flow | 60.0 L/min |
| Pressure Rating | 0-14 bar (0-203 psi) |
| Certifications | CSA, UL, CRN |
| Data Sheet | DOWNLOAD |
⚠ 3D Drawings are available upon request.

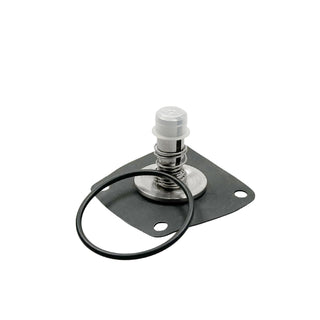

REPAIR KITS
Certain restrictions apply.
