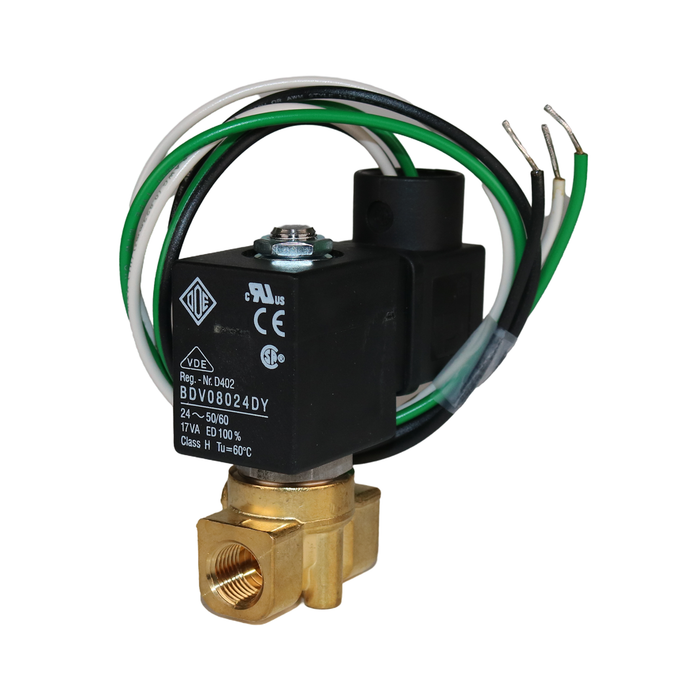

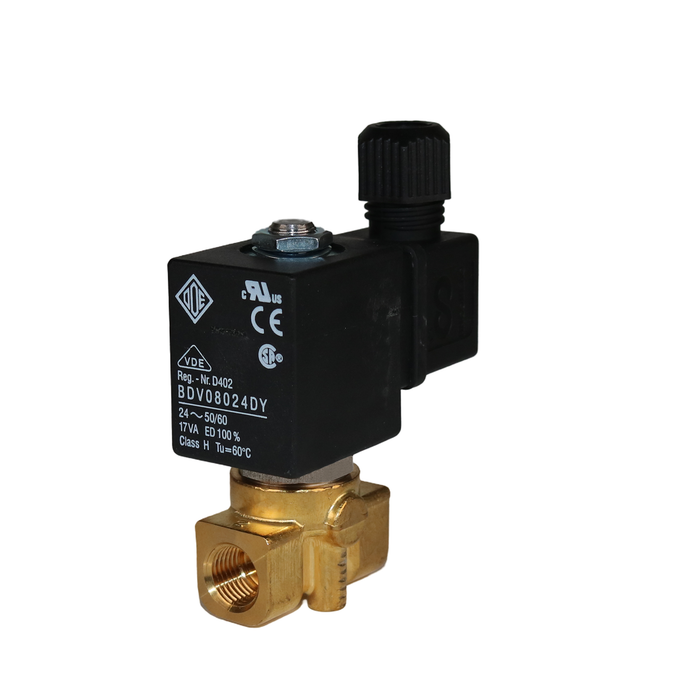

ODE 212A3KV15 Solenoid Valve 1/8" BSP N.C 2/2 WAY - Solenoid Valve - ODE
Brass Body

ODE 212A3KV15 Solenoid Valve 1/8" G 2/2 WAY Normally Closed (N.C)

Premium Solenoid Valve

$110.99 - $194.99
$110.99
$110.99 - $194.99
$110.99
TECHNICAL SPECIFICATIONS

Have A Question? - Contact Us

Voltage Power Complete P/N
12V DC 8 W 212A3KV15BM3
12V AC (50 Hz) 8 W 212A3KV15B17
24V DC 8 W 212A3KV15BJ4
24V AC (50/60 Hz) 8 W 212A3KV15BK5
110-120V AC (50/60 Hz) 8 W 212A3KV15BK6
230-240V AC (50/60 Hz) 8 W 212A3KV15BK7



Valve Function Direct Acting
Valve Type General Purpose Solenoid Valve
Fitting Type Connector
Actuation Electric (Solenoid)
Valve Starting Position Normally Closed
Pipe  1/8" G (BSP)
Direction 2/2 Way
Body Material Brass
Sealing Material FKM (Fluoroelastomer)
Flow 1.4 L/min
Pressure Rating 0-30 bar (0 - 435 psi)
Certifications CSA, UL, CRN
Data Sheet DOWNLOAD

⚠ 3D Drawings are available upon request.

Net Weight: 0.69 lb
APPLICATIONS

Suitable for use in a variety of industries including

Please select a valid Power before adding to cart.
Shipping Protection
Protection Icon
Shipping Protection
Enhance the protection of your shipment with our shipping insurance, guarding it against loss during shipping.

Certain restrictions apply.

Starting at only $5
Valve Identification

Identifying Our Valve

Identifying ODE part numbers is crucial for several reasons. First and foremost, it ensures that you are ordering the correct valve for your specific application. ODE offers a wide range of valves, each designed for different purposes. By identifying the part number, you can be confident that you are getting the right valve that meets your requirements.

Part Number on the Body

The ODE part number is typically engraved or printed on the valve body. Look for a series of alphanumeric characters that uniquely identify the valve model. The part number is usually located on the side or the bottom of the valve body. In some cases, it may also be found on the valve tag or label.

Additional Info Image

  • Series

    The first few characters of the part number represent the valve series. This indicates the general type or category of the valve, such as solenoid valves, proportional valves, or pressure regulators.

  • Port Size

    The next set of characters denotes the valve size. This refers to the physical dimensions of the valve, such as the port size.

  • Sealing Material

    Following the size, there may be additional characters that indicate the valve's specific sealing material.

Learn more →
