Brass Body

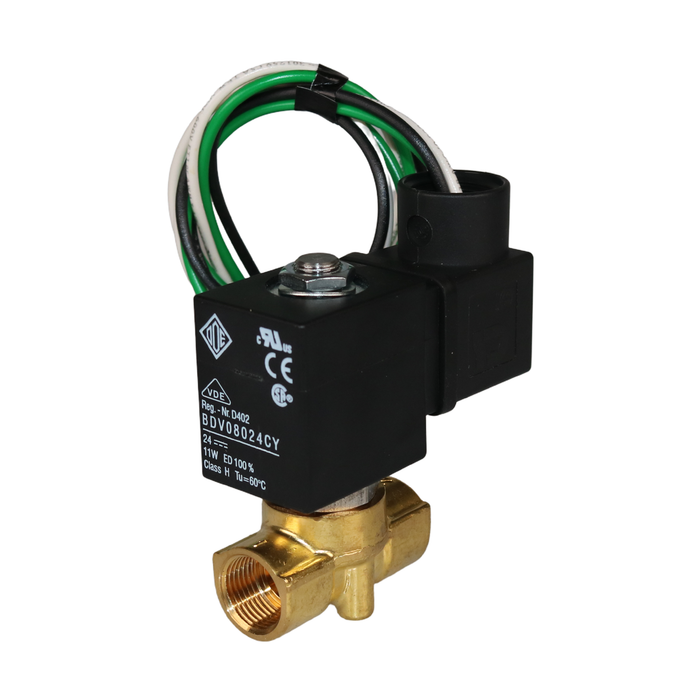

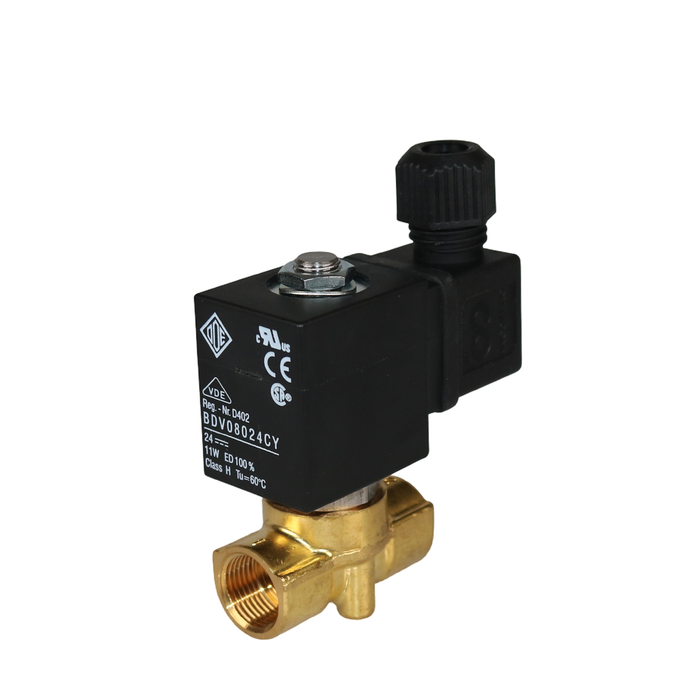

ODE 212A5KV55 Solenoid Valve 3/8" G 2/2 WAY Normally Closed (N.C)
Premium Solenoid Valve
Original price
$140.99
-
Original price
$284.99
Original price
$140.99
$140.99
-
$284.99
Current price
$140.99
TECHNICAL SPECIFICATIONS
Have A Question? - Contact Us
| Voltage | Power | Complete P/N |
| 12V DC | 8 W | 212A5KV55BM3 |
| 12V AC (50 Hz) | 8 W | 212A5KV55B17 |
| 24V DC | 8 W | 212A5KV55BJ4 |
| 24V AC (50/60 Hz) | 8 W | 212A5KV55BK5 |
| 110-120V AC (50/60 Hz) | 8 W | 212A5KV55BK6 |
| 230-240V AC (50/60 Hz) | 8 W | 212A5KV55BK7 |
| 12V DC | 12 W | 212A5KV55U24 |
| 24V DC | 12 W | 212A5KV55U25 |
| 24V AC (50/60 Hz) | 12 W | 212A5KV55U26 |
| 110-120V AC (50/60 Hz) | 12 W | 212A5KV55U27 |
| 230-240V AC (50/60 Hz) | 12 W | 212A5KV55U28 |
| 12V DC | 14 W | 212A5KV55G72 |
| 24V DC | 14 W | 212A5KV55G67 |
| 24V AC (50/60 Hz) | 14 W | 212A5KV55G68 |
| 110-120V AC (50/60 Hz) | 14 W | 212A5KV55G69 |
| 230-240V AC (50/60 Hz) | 14 W | 212A5KV55G70 |
| Valve Function | Direct Acting |
| Valve Type | General Purpose Solenoid Valve |
| Fitting Type | Connector |
| Actuation | Electric (Solenoid) |
| Valve Starting Position | Normally Closed |
| Pipe Size | 3/8" G (BSP) |
| Direction | 2/2 Way |
| Body Material | Brass |
| Sealing Material | FKM (Fluoroelastomer) |
| Flow | 9.0 L/min |
| Pressure Rating | 0-10 bar (0-145 psi) |
| Certifications | CSA, UL, CRN |
| Data Sheet | DOWNLOAD |
⚠ 3D Drawings are available upon request.
Net Weight:
0.67 lb
