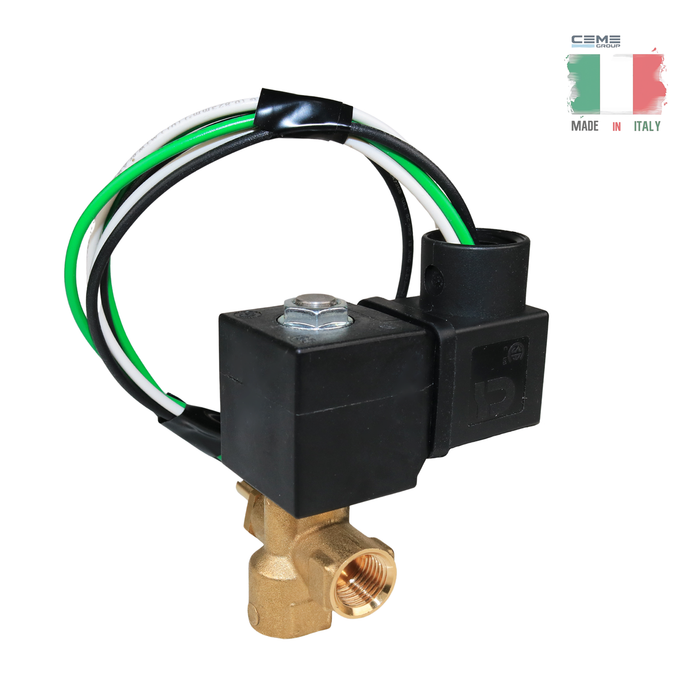

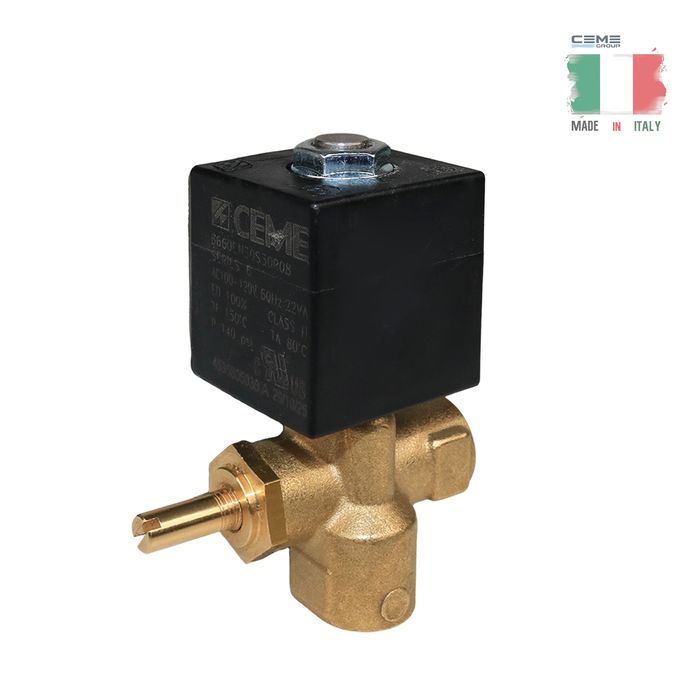

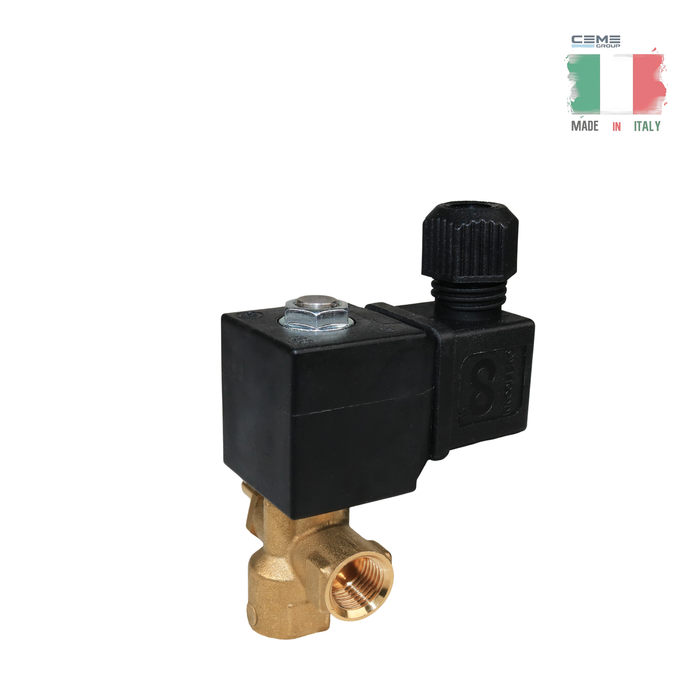

CEME 6660EN30S30R08 Solenoid Valve 1/4" G 2/2 WAY Normally Closed (N.C) (100-120VAC 60Hz)
Brass Body

CEME 6660EN30S30R08 Solenoid Valve 1/4" G 2/2 WAY Normally Closed (N.C) (100-120VAC 60Hz)

Premium Solenoid Valve | Made in Italy

$123.99 - $123.99
$123.99
$123.99 - $123.99
$123.99
Availability:
In stock
TECHNICAL SPECIFICATIONS

Have A Question? - Contact Us

Valve Function Direct Acting
Valve Type General Purpose Solenoid Valve
Actuation Electric (Solenoid)
Valve Starting Position Normally Closed
Pipe  1/4" G (BSP)
Direction 2/2 Way
Body Material Brass
Sealing Material EPDM
Flow 0.17 m3/hr
Pressure Rating 0-9 bar (0-135 psi)
Certifications CSA, UL
Datasheet DOWNLOAD



Net Weight: 0.5 lb
APPLICATIONS

Suitable for use in a variety of industries including

Multi purpose
This item/variant is currently out of stock.
Estimated lead time: 6–8 weeks.
Contact us for urgent inquiries or to request MOQ.

*We reserve the right to adjust lead times in the event of manufacturing or reproduction restrictions beyond our control.

Shipping Protection
Protection Icon
Shipping Protection
Enhance the protection of your shipment with our shipping insurance, guarding it against loss during shipping.

Certain restrictions apply.

Starting at only $5
Valve Identification

Identifying Our Valve

Identifying ODE part numbers is crucial for several reasons. First and foremost, it ensures that you are ordering the correct valve for your specific application. ODE offers a wide range of valves, each designed for different purposes. By identifying the part number, you can be confident that you are getting the right valve that meets your requirements.

Part Number on the Body

The ODE part number is typically engraved or printed on the valve body. Look for a series of alphanumeric characters that uniquely identify the valve model. The part number is usually located on the side or the bottom of the valve body. In some cases, it may also be found on the valve tag or label.

Additional Info Image

  • Series

    The first few characters of the part number represent the valve series. This indicates the general type or category of the valve, such as solenoid valves, proportional valves, or pressure regulators.

  • Port Size

    The next set of characters denotes the valve size. This refers to the physical dimensions of the valve, such as the port size.

  • Sealing Material

    Following the size, there may be additional characters that indicate the valve's specific sealing material.

Learn more →
