Brass Body

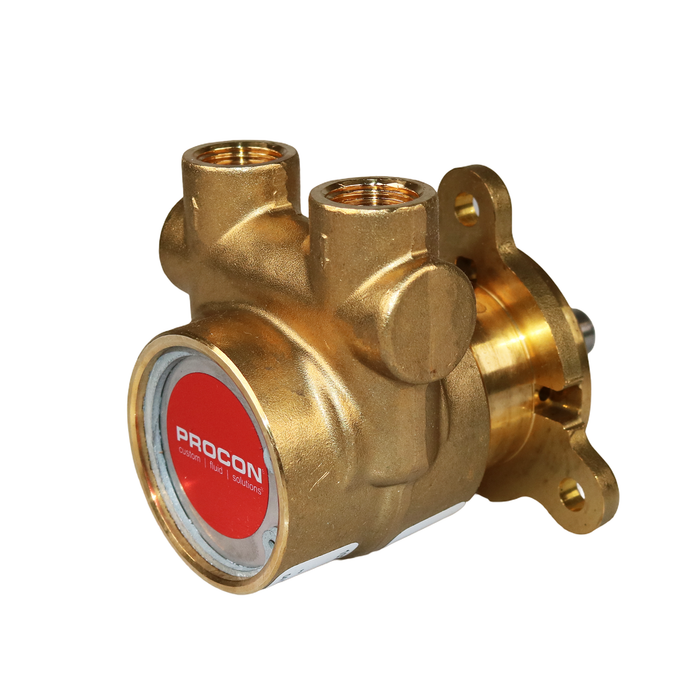

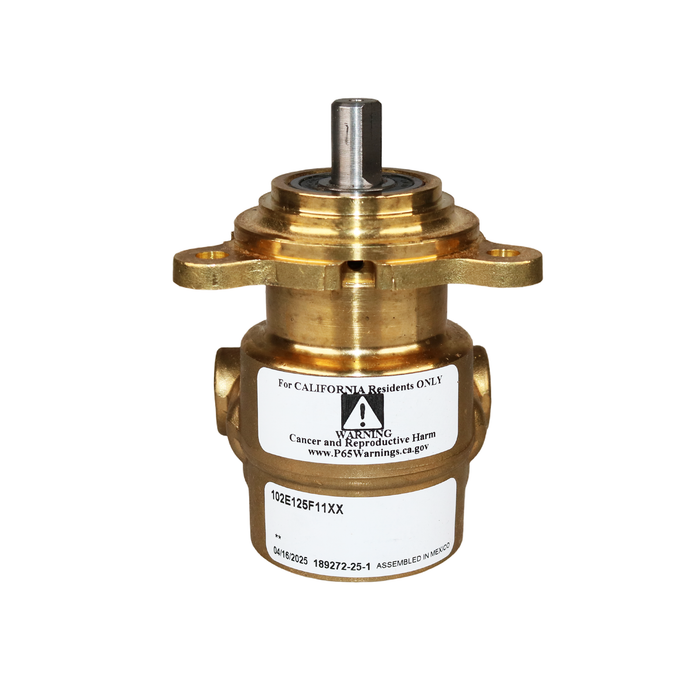

PROCON 102E125F11XX - 3/8" NPT Brass Rotary Vane Pump Series 2
Premium Rotary Vane Pump | Made in Italy
Precio original
$239.99
-
Precio original
$239.99
Precio original
$239.99
$239.99
-
$239.99
Precio actual
$239.99
Lead time: Approximately 2-3 weeks
TECHNICAL SPECIFICATIONS
Have A Question? - Contact Us
Technical Information
| Body Material | Brass |
| Port Size | 3/8" NPT |
| Mounting Type | Bolt-On |
| Drive Configuration | Single Flat |
| Flow Rate | 125 GPH / 375 LPH |
| Elastomer | EPDM/Nitrile |
| Seal Type |
Non Bal
|
| Rotation | Clockwise |
| Internal Component Material |
Carbon |
| Valve Configuration |
No Relief Valve
|
Operating Range
| Maximum Mechanical Power Requirement: | 0.57hp (425W) |
| Maximum Operating Pressure: | 250psi |
| Max Static Pressure: | 100 psi |
| Operation Fluid Temperature Range: | -4°F (-20°C) - 160°F (71°C) |
| Max Fluid Viscosity: | 100 cP |
| Max Sound Level: | 60dB(a) |
| Max Discharge Pressure: | 250 psi |
| Min/Max Speed: | 1000 - 2400 RPM |
| Dry Suction Lift: | 3.3 ft |
| Wet Suction Lift: | 6.6 ft |
| Fluid Acidity: |
6 pH |
| Maximum Total Dissolved Solids (TDS): | 5000 ppm |
Net Weight:
2.29 lb
APPLICATIONS
Suitable for use in a variety of industries including
