Low-Pressure Solenoid Valves: How to Choose

If your system runs at low static or differential pressure (near zero to a few psi/bar), pick a direct-acting (zero-dp-capable) solenoid valve sized for the flow and with a compatible seal material. Avoid pilot/indirect valves unless the datasheet explicitly states they operate at your available minimum differential. Also check coil voltage, duty cycle, enclosure rating and the valve’s listed pressure range before you buy.

• Direct-acting valve: electromagnetic armature opens or closes the flow path directly; can work at zero differential pressure.\
• Pilot-operated (indirect) valve: a small pilot port and the line pressure move a larger main spool or diaphragm; usually requires a minimum differential pressure to operate.\
• Cv/Kv: flow coefficient used to compare valve capacity (give values only for the same fluid and ΔP).\
• Seal materials: elastomers or plastics that contact the fluid (NBR, EPDM, FKM/Viton, PTFE — note PTFE is a thermoplastic, not an elastomer).

Why low-pressure systems need special attention (plain language)

Low-pressure systems — for example gravity-fed water lines, condensate drains, some laboratory fixtures or small pneumatic bleed lines — often provide little or no pressure differential across a control valve. Pilot/indirect solenoids commonly used in higher-pressure piping rely on that differential to shift the main element. If the valve’s design or datasheet requires a minimum ΔP (differential), the pilot won’t move and the valve will not operate. For reliable control at low pressure choose valves explicitly rated for "0" minimum differential (direct-acting designs) or low-pressure-specific indirect designs.

How to think about selection (practical checklist summary)

• Confirm your operating conditions: static pressure, expected differential during activation, fluid type, max temperature, and expected flow.\
• For near-zero ΔP choose a direct-acting valve.\
• Match seal material to fluid and sanitizing chemicals (see compatibility basics below).\
• Verify coil voltage, connector type and duty cycle with the control system.\
• Confirm ingress rating and certifications if the valve is outdoors or in a regulated process.

Direct-acting vs pilot-operated: a compact comparison

Relevant examples from our product pages (discussing the photos)

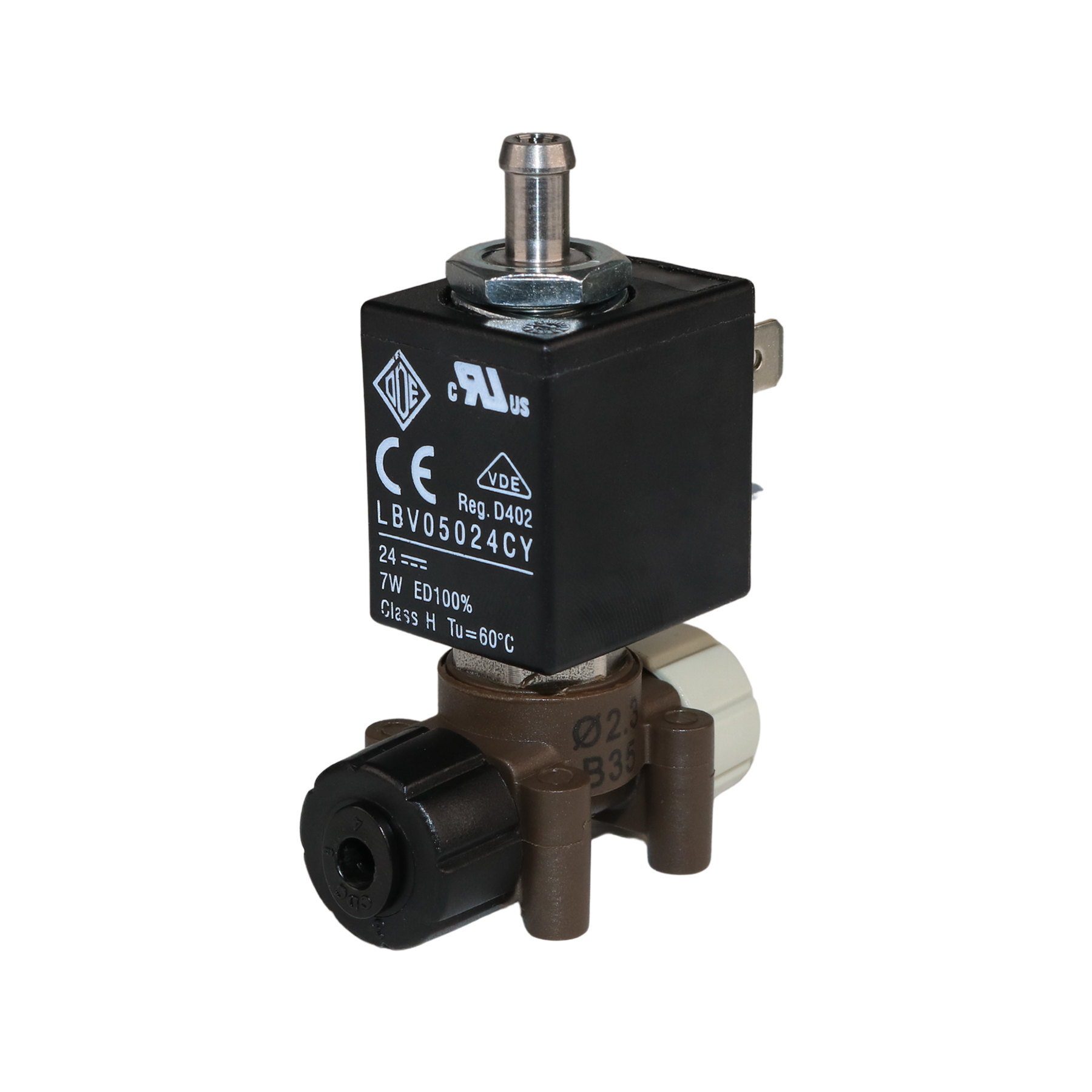

• ODE 31JP5XP1V23 Solenoid Valve Push-in Ø 4 3/2 WAY Normally Closed (N.C) with Low Power Coil — This is a direct-acting, small-bore plastic (PPS) valve rated 0–5 bar (0–72 psi) with FKM seals and a compact push-in connection. The product photo shows a compact valve suitable for OEM piping or pneumatic manifolds. See the product page for the image and datasheet: ODE 31JP5XP1V23.\

(Product link and photo: ODE 31JP5XP1V23-ST0 Solenoid Valve Push-in Ø 4 3/2 WAY Normally Closed (N.C) with Low Power Coil)

• ODE 316JN1UP1V12-T3 Solenoid Valve 1/8" G 3/2 WAY Normally Closed (N.C) with Low Power Coil — a small direct-acting brass-bodied valve rated 0–15 bar (0–217 psi) with FKM seals. The product image helps you confirm port threading and connector orientation for tight OEM assemblies.\

(Product link and photo: ODE 316JN1UP1V12-T3 Solenoid Valve 1/8" G 3/2 WAY Normally Closed (N.C) with Low Power Coil)

• ODE 21WA3I0V130 Solenoid Valve 3/8" G 2/2 WAY Normally Open (N.O) with Low Power Coil — an indirect/indirect-acting (listed as indirect acting) brass valve with a rated pressure range starting at 0.2 bar (≈3 psi). The photo shows a larger brass body and a conventional DIN-style coil. For low-pressure service check the datasheet for minimum ΔP and functional notes.\

(Product link and photo: ODE 21WA3I0V130 Solenoid Valve 3/8" G 2/2 WAY Normally Open (N.O) with Low Power Coil)

• ODE 21W series 3/4" and 1" valves (for example ODE 21W3RV190 and ODE 21W4RB250) are indirect-acting, higher flow valves with rated ranges starting at 0.2 bar. Their photos show larger brass bodies and DIN coil mounting; use their images to check face-to-face length and porting for retrofit work.\

(Product links and photos: ODE 21W3RV190 Solenoid Valve 3/4" G 2/2 WAY Normally Closed (N.C) with Low Power Coil and ODE 21W4RB250 Solenoid Valve 1" G 2/2 WAY Normally Closed (N.C) with Low Power Coil)

Why the product photos matter in selection

Product images show body shape, port type (thread style or push-fit), coil mounting and connector type. For low-pressure retrofits you often need a specific port or a low-profile coil — confirm that visually and against the datasheet before ordering.

Seal materials and fluid compatibility (practical guidance)

• NBR (nitrile): good for general-purpose water and oils; less resistant to ozone, some detergents and hot water over time.\
• EPDM: excellent for hot water, steam-compatible in some designs, good with many detergents and glycol; not compatible with many hydrocarbons or oils.\
• FKM / Viton: wide chemical resistance including oils and many aggressive fluids; higher temperature capability.\
• PTFE: a thermoplastic seat or seal used for chemical resistance and temperature; not an elastomer — where listed it may provide excellent chemical compatibility but check seating and leakage specs.\

Choose the elastomer/plastic the manufacturer lists for the exact valve variant and confirm against your cleaning chemicals or process fluids.

Coil, duty cycle and electrical considerations

• Voltage and type: confirm coil voltage (6V, 12V, 24V, 110V, 230V, 380V, etc.) and AC vs DC. Some small valves use low-power coils; larger valves may need higher inrush.\
• Duty cycle: continuous (100%) vs intermittent. Continuous-operation coils are required where the valve is energized for long periods.\
• Connector style: DIN coil, flying leads, or proprietary connectors — confirm cable routing and space.\
• Ambient and enclosure: if the valve is outdoors or in wet areas, check the coil’s IP rating or any enclosure needed.

Installation and good practice on low-pressure systems

• Place the valve where you can service the coil and replace it without draining large parts of the system.\
• Install a fine inline strainer ahead of the valve to reduce debris-related sticking — especially important with small direct-acting valves.\
• Use upstream isolation valves so you can remove the solenoid without shutting the whole system.\
• For pilot/indirect valves in marginal pressure systems, test the operating sequence on a bench with the real supply pressure to confirm operation before final installation.

Single labelled technical checklist (must-do verification before you buy or install)

1. Record the service fluid, maximum fluid temperature and any sanitizing/cleaning chemicals used.\
2. Measure the available static pressure at the valve location and the minimum expected differential pressure when the valve should open.\
3. Choose valve actuation type: if minimum ΔP ≤ 0.1 bar (near zero) prefer direct-acting valve; if ΔP reliably exceeds the manufacturer’s minimum for an indirect valve, pilot types may be OK.\
4. Select valve body size and Cv/Kv to meet required flow at the expected differential (use manufacturer Kv/Cv data where available).\
5. Select seal material compatible with fluid and cleaning chemicals (NBR, EPDM, FKM, PTFE — remember PTFE is a thermoplastic).\
6. Confirm coil voltage, AC/DC, connector type and duty cycle match your control wiring.\
7. Verify pressure rating and certification (CSA/UL/CRN/NSF where needed) on the exact model variant you intend to buy — do not assume ratings from similar models.\
8. Check the product datasheet for minimum operating differential (for pilot valves) and for any specific installation notes.\
9. Plan for upstream filtration/strainer and isolation for service.\
10. Bench-test the valve under actual supply conditions before commissioning; observe opening/closing times and leakage.

When to accept an indirect/pilot valve in a low-pressure system

Only if the manufacturer’s datasheet explicitly lists the valve operating range that includes your low ΔP, or the valve is a low‑pressure-specific indirect model. Where product pages list "indirect" but start pressure above zero (for example 0.2 bar), confirm the minimum ΔP and test with the real supply — some indirect valves can operate quite close to that lower bound, but the safe approach is direct-acting for true near-zero ΔP.

Related reading and resources on Hydronics Depot Inc.

• For a wider discussion on when to choose electrical vs pneumatic actuation see our guide: Solenoid vs Pneumatic Valve: Which Utilities Does Your Valve Need? (useful when your site has plant air available instead of, or in addition to, electrical control):
• If corrosion resistance or sanitary cleaning matters, consult our stainless-steel valve overview: Stainless Steel Solenoid Valves for Corrosive, Sanitary & Industrial Applications:
• For examples of normally-open designs and where they’re useful see: The Power of CEME Normally Open Solenoid Valves:

Two quick case examples (how this looks in the field)

1. Gravity-fed lab water rinse (near-zero ΔP): Use a compact direct-acting valve such as the ODE 31JP5XP1V23 push-in valve. Its product photo shows a compact, low-profile body suited to small lab manifolds and it is rated from 0–5 bar, making it a good candidate for low-pressure control. Confirm seal compatibility before ordering. (See product:
2. Municipal low-head booster with occasional higher ΔP: If the system sometimes develops higher ΔP and energy efficiency at high flow is important, you may consider a larger indirect valve — but only after confirming the exact model’s min ΔP and testing under real conditions. Use product photos (for example ODE 21W series) to confirm porting and coil fit before retrofit. (See product: ODE 21W4RB250 Solenoid Valve 1" G 2/2 WAY Normally Closed (N.C) with Low Power Coil)

FAQ (concise)

Q: Can I use any solenoid valve at very low pressure if I reduce orifice size?\ A: No. Reducing orifice changes flow but does not change the valve’s actuation principle. If a valve is pilot-operated and requires some ΔP to move the main element, it still may not operate at low pressure. Use a direct-acting valve for zero-ΔP service.

Q: Are plastic-bodied direct-acting valves reliable for potable water?\ A: Many small plastic-bodied direct valves are suitable for potable water; check the exact model’s certifications (NSF, CRN as applicable) and the seal material compatibility. Confirm using the manufacturer datasheet for the exact SKU. Example product pages show certifications where applicable.

Q: How important is a strainer on a low-pressure solenoid?\ A: Very. Small direct-acting valves have small internal passages and are sensitive to debris. A strainer upstream reduces sticking and false sealing.\

Q: If the product page lists an operating range starting at 0.2 bar, is that OK for low-pressure use?\ A: Treat 0.2 bar (≈3 psi) as a practical lower bound. For true near-zero-dp service you need a direct-acting valve or a model that explicitly lists 0 minimum. Bench test the specific valve under your supply to confirm.

Closing notes

Selecting the right solenoid valve for low-pressure service is mostly about matching actuation type to the available differential pressure, choosing compatible seals for the fluid, and confirming coil and porting details for your installation. Use manufacturer datasheets and the product photos on the linked pages to check the valve geometry, coil fit and connector type for your application before purchase.

Image notes — product photos used in the article

• The product photo for ODE 31JP5XP1V23 shows the small, push-in direct-acting valve form factor referenced in the lab and OEM examples. (See:
• The product photo for ODE 316JN1UP1V12-T3 shows a small brass direct valve useful for compact threaded systems. (See:
• The product photos for ODE 21WA3I0V130 and ODE 21W4RB250 illustrate larger indirect/indirect-acting brass valves; these images are helpful for planning clearances and coil orientation when considering pilot-operated options. (See: ODE 21WA3I0V130 Solenoid Valve 3/8" G 2/2 WAY Normally Open (N.O) with Low Power Coil and ODE 21W4RB250 Solenoid Valve 1" G 2/2 WAY Normally Closed (N.C) with Low Power Coil)

• Check the exact model datasheet for the valve’s minimum operating differential pressure (minimum ΔP) where the product is listed as indirect/indirect-acting. Not all product pages list a min ΔP; confirm before specifying.\
• Confirm specific coil voltage, duty cycle, and IP rating on the SKU you intend to buy; coil families and options vary by variant.
