Brass Körper

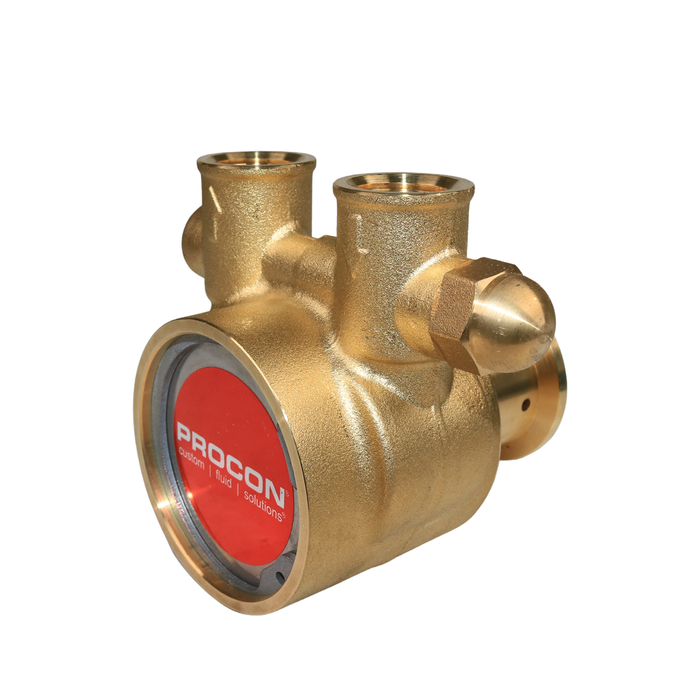

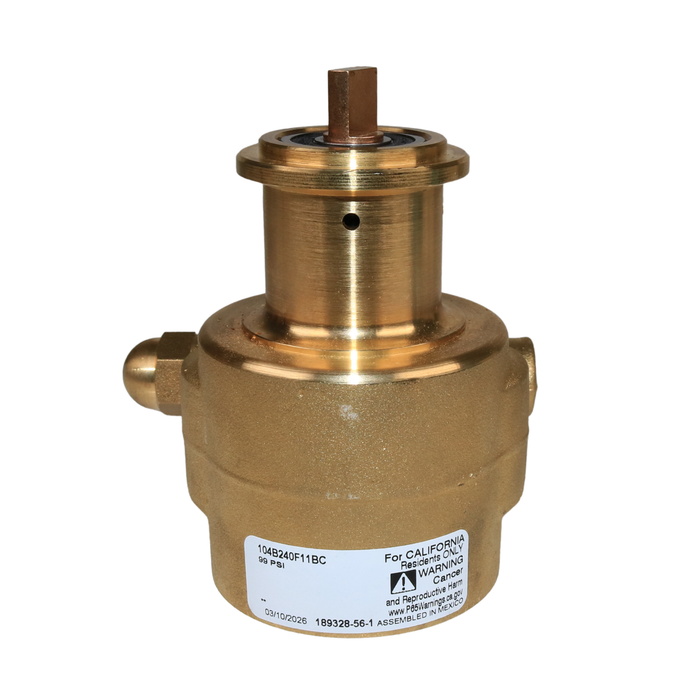

PROCON 104B240F11BC - 1/2" NPT Messing Rotationsflügelpumpe Serie 4
Premium Rotationsflügelpumpe
Ursprünglicher Preis
$262.99
-
Ursprünglicher Preis
$262.99
Ursprünglicher Preis
$262.99
$262.99
-
$262.99
Aktueller Preis
$262.99
Verfügbarkeit:
Auf Lager
Attention
We Offer Volume Based Pricing on This Product.
Call 1-800-936-2819 For More Details.
TECHNISCHE SPEZIFIKATIONEN
Haben Sie eine Frage? - Kontaktieren Sie uns
Technical Information
| Body Material | Brass |
| Port Size | 1/2" NPT |
| Mount | Clamp-On |
| Drive Configuration | Slotted With Bronze Coupling 1143 |
| Flow Rate | 240 GPH / 725 LPH |
| Elastomer | EPDM / Nitrile Elastomers |
| Seal Type | Non Balances Ceramic / Carbon |
| Rotation | Clockwise |
| Internal Component Material | Carbon |
| Valve Type | Solid-Utem |
| Valve Configuration | Standard Non-External Adjust |
Operating Range
| Maximum Mechanical Power Requirement | 0.86 hp (641 W) |
| Maximum System Pressure | 60 psi |
| Relief Valve Set Pressure Range | 60 to 99psi (4 to 7 BAR) |
| Max Static Pressure | 100 psi |
| Operation Fluid Temperature Range | -4°F (-20°C) - 160°F (71°C) |
| Max Fluid Viscosity | 100 cP |
| Max Sound Level | 60dB(a) |
| Max Discharge Pressure | 250 PSI |
| Min/Max Speed | 1000 - 2400 RPM |
| Dry Suction Lift | 3.3 ft |
| Wet Suction Lift | 6.6 ft |
| Fluid Acidity | 6 pH |
| Maximum Total Dissolved Solids (TDS) | 5000 ppm |
Net Weight:
2.91 lb
