Brass Körper

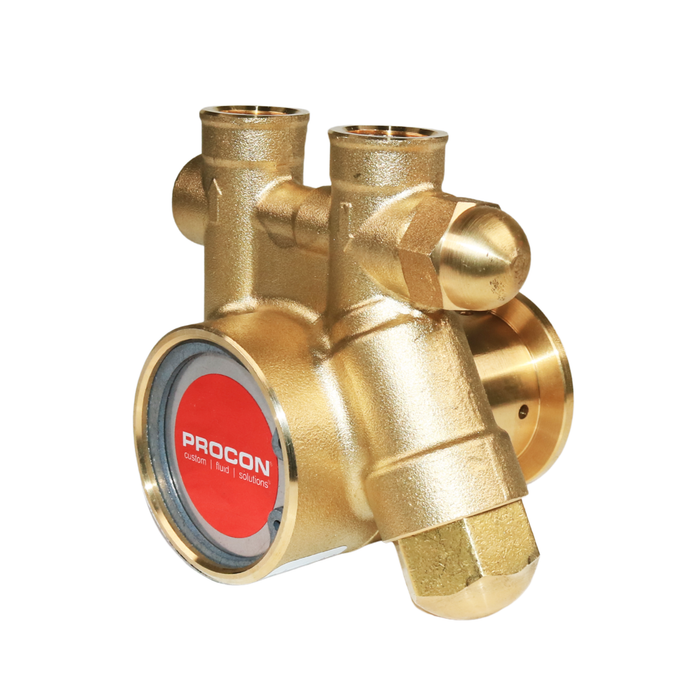

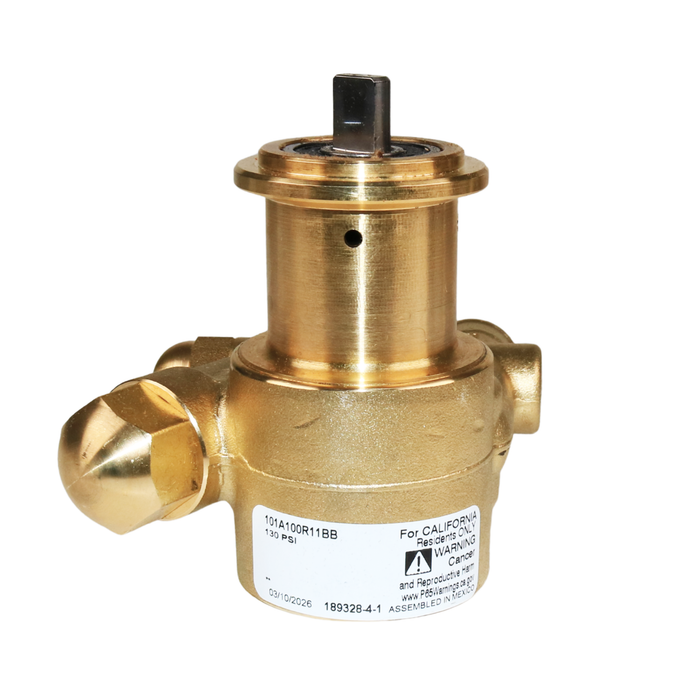

PROCON 101A100R11BB - 3/8" NPT Messing Rotationsflügelpumpe Serie 1
Premium Rotationsflügelpumpe
Ursprünglicher Preis
$215.99
-
Ursprünglicher Preis
$215.99
Ursprünglicher Preis
$215.99
$215.99
-
$215.99
Aktueller Preis
$215.99
Verfügbarkeit:
Auf Lager
Attention
We Offer Volume Based Pricing on This Product.
Call 1-800-936-2819 For More Details.
TECHNISCHE SPEZIFIKATIONEN
Haben Sie eine Frage? - Kontaktieren Sie uns
Technical Information
| Body Material | Brass |
| Port Size | 3/8" NPT |
| Mount | Clamp-On |
| Drive Configuration | Double Flat |
| Flow Rate | 100 GPH / 300 LPH |
| Elastomer | Fluorocarbon |
| Seal Type | Non Balances Ceramic/Carbon |
| Rotation | Clockwise |
| Internal Component Material | Carbon |
| Valve Type | Solid- Utem |
| Valve Configuration | Standard-Non External adjust |
Operating Range
| Maximum Mechanical Power Requirement | 0.42hp (313W) |
| Maximum System Pressure | 100 psi |
| Relief Valve Set Pressure Range | 100 to 150psi (7 to 10 BAR) |
| Max Static Pressure | 100 psi |
| Operation Fluid Temperature Range | -4°F (-20°C) - 160°F (71°C) |
| Max Fluid Viscosity | 100 cP |
| Max Sound Level | 60dB(a) |
| Max Discharge Pressure | 250 psi |
| Min/Max Speed | 1000 - 2400 RPM |
| Dry Suction Lift | 3.3 ft |
| Wet Suction Lift | 6.6 ft |
| Fluid Acidity | 6 pH |
| Maximum Total Dissolved Solids (TDS) | 5000 ppm |
Net Weight:
2.4 lb
