Brass Körper

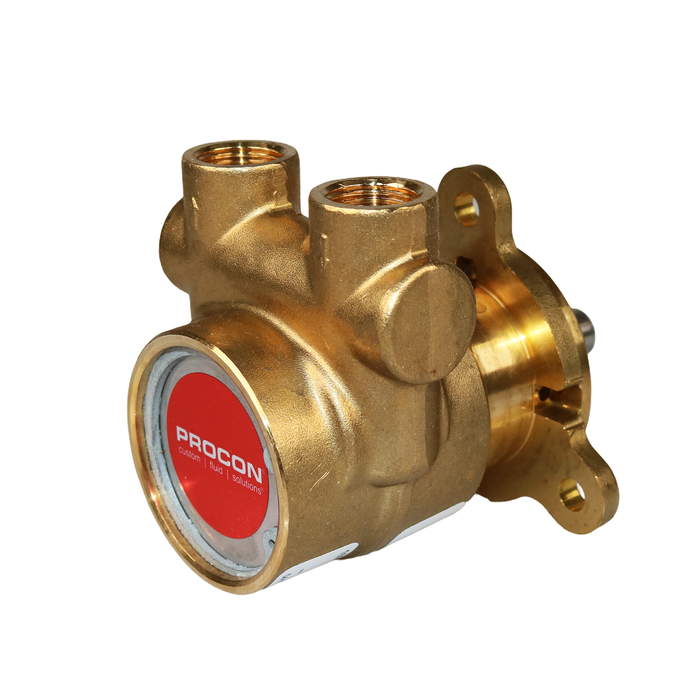

PROCON 112E125F11XX - 3/8" NPT Messing Rotationsflügelpumpe Serie 2
Premium Rotationsflügelpumpe
Ursprünglicher Preis
$152.99
-
Ursprünglicher Preis
$152.99
Ursprünglicher Preis
$152.99
$152.99
-
$152.99
Aktueller Preis
$152.99
Attention
We Offer Volume Based Pricing on This Product.
Call 1-800-936-2819 For More Details.
TECHNISCHE SPEZIFIKATIONEN
Haben Sie eine Frage? - Kontaktieren Sie uns
Technical Information
| Body Material | Brass |
| Port Size | 3/8" NPT |
| Mount | Bolt-ON |
| Drive Configuration | Single flat |
| Flow Rate |
125 GPH /375 LPH |
| Elastomer | EPDM/Nitrile |
| Seal Type |
Non Balances Ceramic/Carbon
|
| Rotation |
Clockwise |
| Internal Component Material |
Carbon |
| Valve Configuration | No Relief valve |
| Agency Approvals | NSF STD. 169 Listed (1.5% Max Lead) |
Operating Range
| Maximum Mechanical Power Requirement | 0.57hp (425W) |
| Maximum System Pressure |
250psi |
| Operation Fluid Temperature Range | -4°F (-20°C) - 160°F (71°C) |
| Max Fluid Viscosity | 100 cP |
| Max Sound Level | 60dB(a) |
| Max Discharge Pressure | 250 psi |
| Min/Max Speed | 1000 - 2400 RPM |
| Dry Suction Lif | 3.3 ft |
| Wet Suction Lift | 6.6 ft |
| Fluid Acidity |
6 pH |
| Maximum Total Dissolved Solids (TDS) | 5000 ppm |
Net Weight:
2.3 lb
