Stainless Steel Körper

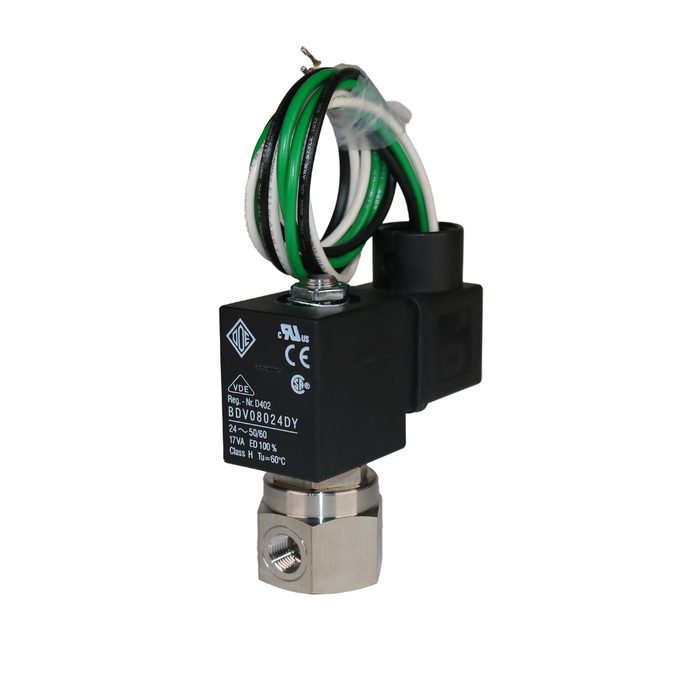

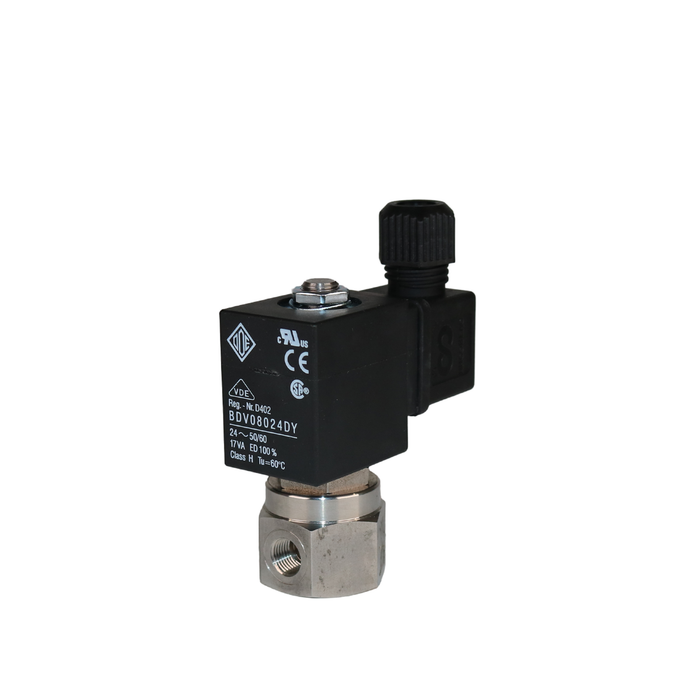

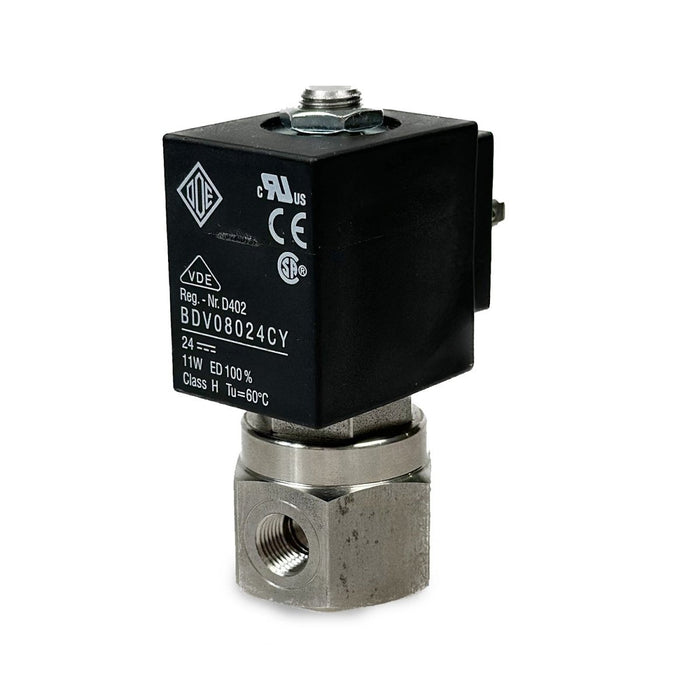

ODE 21L1K1V30-RL Solenoid Valve 1/8" G 2/2 WAY Normally Closed (N.C)
Premium Solenoid Valve
TECHNISCHE SPEZIFIKATIONEN
Haben Sie eine Frage? - Kontaktieren Sie uns
| Voltage | Power | Complete P/N |
| 12V DC | 8 W | 21L1K1V30-RLBM3 |
| 12V AC (50 Hz) | 8 W | 21L1K1V30-RLB17 |
| 24V DC | 8 W | 21L1K1V30-RLBJ4 |
| 24V AC (50/60 Hz) | 8 W | 21L1K1V30-RLBK5 |
| 110-120V AC (50/60 Hz) | 8 W | 21L1K1V30-RLBK6 |
| 230-240V AC (50/60 Hz) | 8 W | 21L1K1V30-RLBK7 |
| 12V DC | 12 W | 21L1K1V30-RLU24 |
| 24V DC | 12 W | 21L1K1V30-RLU25 |
| 24V AC (50/60 Hz) | 12 W | 21L1K1V30-RLU26 |
| 110-120V AC (50/60 Hz) | 12 W | 21L1K1V30-RLU27 |
| 230-240V AC (50/60 Hz) | 12 W | 21L1K1V30-RLU28 |
| 12V DC | 14 W | 21L1K1V30-RLG72 |
| 24V DC | 14 W | 21L1K1V30-RLG67 |
| 24V AC | 14 W | 21L1K1V30-RLG68 |
| 110-120V AC (50/60 Hz) | 14 W | 21L1K1V30-RLG69 |
| 230-240V AC (50/60 Hz) | 14 W | 21L1K1V30-RLG70 |
| Valve Function | Direct Acting |
| Valve Type | General Purpose Solenoid Valve |
| Fitting Type | Connector |
| Actuation | Electric (Solenoid) |
| Valve Starting Position | Normally Closed |
| Pipe | 1/8" G (BSP) |
| Direction | 2/2 Way |
| Body Material | Stainless Steel - SS316 |
| Sealing Material | FKM (Fluoroelastomer) |
| Flow | 4.0 L/min |
| Pressure Rating | 0-25 bar (0-362 psi) |
| Certifications | CSA, UL, CRN |
| Data Sheet | DOWNLOAD |
Certain restrictions apply.
